REMOVAL AND INSTALLATION


caution Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.
Pre-removal OperationFloor Console Removal (Refer to GROUP 52A - Floor Console Assembly ).
 Post-installation Operation
  • Parking Brake Lever Stroke Adjustment (Refer to ).
  • Floor Console Installation (Refer to GROUP 52A - Floor Console Assembly ).

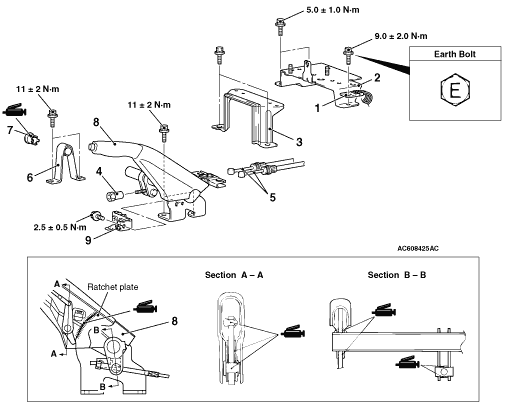

Removal steps


1.
 Earth connection


2.
 G sensor bracket


3.
 Floor console bracket


4.
 Adjusting nut

>>A<<
 5.
 Parking brake rear cable connection


6.
 Parking brake stay


7.
 Bushing


8.
 Parking brake lever assembly


9.
 Parking brake switch

INSTALLATION SERVICE POINT

>>A<< PARKING BRAKE REAR CABLE INSTALLATION
caution Check that the equaliser and the parking brake rear cable are connected correctly. If the parking brake is applied with the equaliser and the parking brake rear cable connected improperly, the equaliser may be damaged.

Connect the parking brake rear cable to the equaliser as shown in the figure.
