REMOVAL AND INSTALLATION <Short wheelbase, Long wheelbase-3,000>


Post-installation Operation
  • Parking Brake Lever Stroke Adjustment (Refer to ).
  • Parking Brake Lining Seating Procedure (Refer to ).

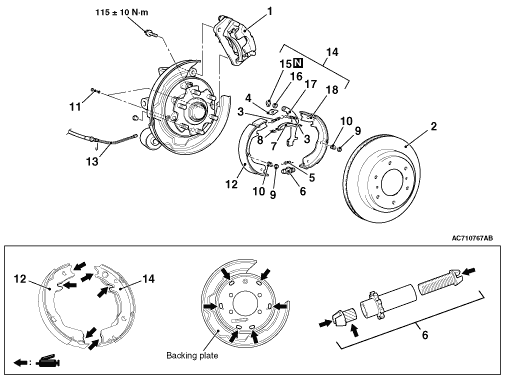

Removal steps
<<A>>
1.
 Rear brake caliper assembly


2.
 Rear brake disc

>>D<<
 3.
 Shoe-to-anchor spring


4.
 Shoe guide plate


5.
 Adjusting wheel spring

>>C<<
 6.
 Adjuster assembly


7.
 Strut


8.
 Strut-to-shoe spring


9.
 Shoe hold-down cup


10.
 Shoe hold-down spring


11.
 Shoe hold-down pin


12.
 Shoe and lining assembly


13.
 Parking brake rear cable connection


14.
 Shoe and lever assembly

>>B<<
 15.
 Retainer

>>A<<
 16.
 Wave washer


17.
 Parking lever


18.
 Shoe and lining assembly

REMOVAL SERVICE POINT

<<A>> REAR BRAKE CALIPER ASSEMBLY REMOVAL
1.Remove the rear brake caliper assembly with brake hose.
2.Hold the rear brake caliper assembly with a wire.

INSTALLATION SERVICE POINTS

>>A<< WAVE WASHER INSTALLATION

Install the wave washer in the direction shown in the illustration.

>>B<< RETAINER INSTALLATION

Crimp the retainer firmly to the pin with pliers.

>>C<< ADJUSTER ASSEMBLY INSTALLATION

Install the adjuster assembly so that the shoe adjusting bolt of left hand wheel is attached towards the rear of the vehicle, and the shoe adjusting bolt of right hand wheel is towards the front of the vehicles.

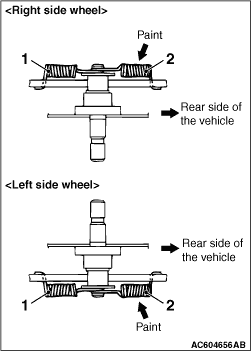

>>D<< SHOE-TO-ANCHOR SPRING INSTALLATION

caution The shoe-to-anchor springs are not interchangeable, so be careful that the spring with the paint mark is installed at the vehicle’s rear side.
Install the shoe-to-anchor springs in the order shown in the illustration.
