REMOVAL AND INSTALLATION


caution Use the special bolts when securing the hinge to the hood. They have special coating for anti-corrosion.
Pre-removal and post-installation operation
  • Radiator grille removal and installation (Refer to GROUP 51 - Radiator Grille .)
  • Clearance check around the hood (Refer to .)
  • Adjustment of the hood level and hood striker engagement (Refer to .)
  • Adjustment of hood height (Refer to .)





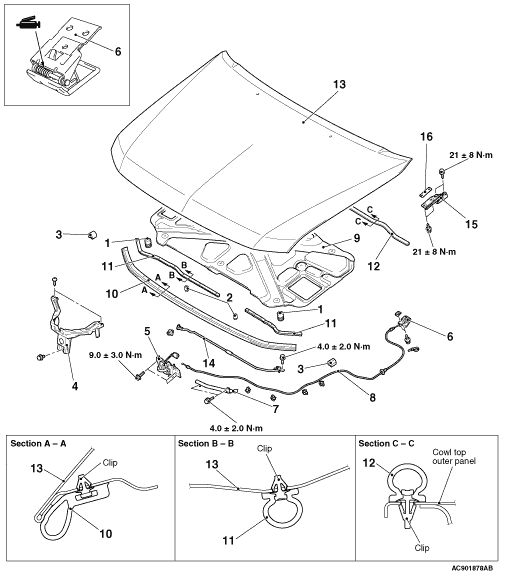

Damper and hood damper removal


1.
 Damper A


2.
 Damper B


3.
 Hood damper



Removal steps for hood latch and hood lock release cable


4.
 Hood latch cover


5.
 Hood latch <Hood latch switch: Optional>


6.
 Hood lock release handle


7.
 Hood lock release cable cover


8.
 Hood lock release cable



Hood and hood hinge removal steps


9.
 Hood insulator


10.
 Hood opening weatherstrip


11.
 Hood weatherstrip front


12.
 Hood weatherstrip


·
 Windshield washer hose, washer nozzle (Refer to GROUP 51 - Windshield washer .)


13.
 Hood


14.
 Hood support rod


·
 Front deck garnish (Refer to GROUP 51 - Windshield wiper .)


15.
 Hood hinge


16.
 Hood hinge shim
