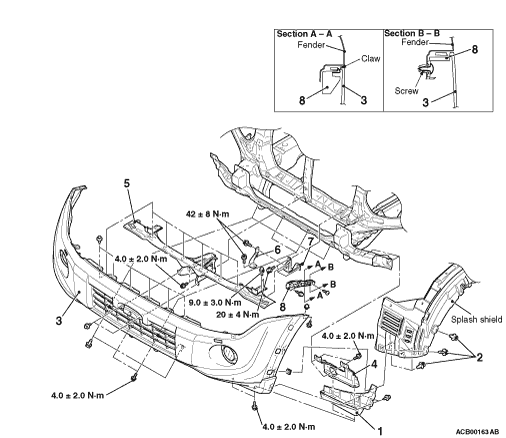

REMOVAL AND INSTALLATION



Removal steps


·
 Radiator grille (Refer to )


·
 Skid plate (Refer to )


·
 Headlamp washer draining (Refer to)


1.
 Front wheelhouse splash shield


2.
 Splash shield mounting clips and screws
<<A>>
3.
 Front bumper assembly


4.
 Front bumper bracket


5.
 Front bumper reinforcement


6.
 Front bumper side support


7.
 Front bumper stay bracket


8.
 Front bumper support bracket

REMOVAL SERVICE POINT

<<A>>FRONT BUMPER ASSEMBLY REMOVAL

caution To prevent the overfender from damage, pull it gradually and do not over-pull it.
Before removing the front bumper assembly, release the front part of the overfender by pulling and unclipping it outwards. This makes the bumper removal possible without removing the entire overfender.
Disconnect the headlamp washer hose and the fog lamp, and then remove the front bumper assembly.
