Refer to the Disassembly Service Point for FRONT BUMPER. ( )
|
|
|
Refer to the Reassembly Service Point for Front Bumper. ()
|
|
|

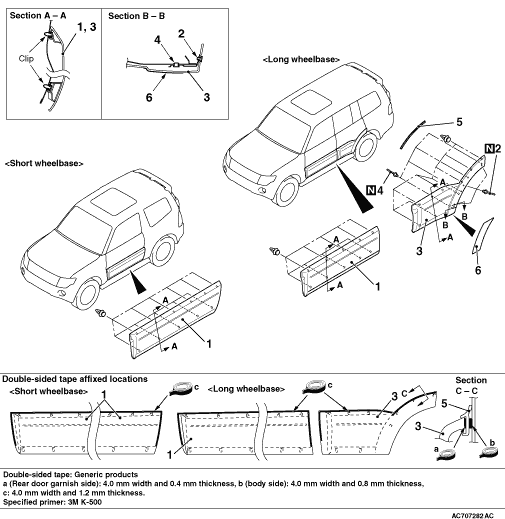

Refer to the Front/Rear Overfender Pad Installation (entitled <Install
the Overfender with Pad to Body>) for overfender ().
|
|
1. Installation position
2.
| caution |
- The ambient temperature should be 20
to 38°C. Ensure that the working area is clean.
- If ambient temperature is less than 20°C, heat the protect film and application
surface to a temperature of 20 to 30°C.
- Be careful that air bubbles are not formed under the protect film.
|
Installation procedure
(1)
Wipe the protect film application surface and clean it with a rag moistened with the
parts cleaner (MZ100387 or equivalent).
(2)
Remove backing paper from the protect film, and apply the film to the specified position.
|
