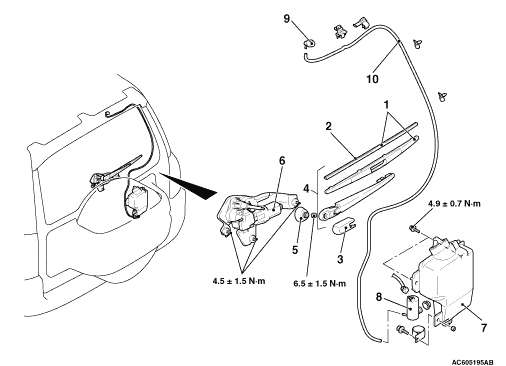

REMOVAL AND INSTALLATION



Rear wiper blade removal steps


1.
 Rear wiper blade assembly

>>A<<
 2.
 Rear wiper blade



Rear wiper motor removal steps


·
 Back door trim (Refer to GROUP 52A, Back door Trim )


3.
 Cover

>>C<<
 4.
 Rear wiper arm and blade assembly

>>B<<
 5.
 Grommet


6.
 Rear wiper motor assembly



Rear washer tank and rear washer motor removal steps


·
 Back door trim (Refer to GROUP 52A, Back door Trim )


·
 Rear washer motor connector connection


7.
 Rear washer tank assembly


8.
 Rear washer motor



Rear washer nozzle and hose removal steps


·
 Back door trim (Refer to GROUP 52A, Back door Trim )


9.
 Rear washer nozzle


10.
 Rear washer hose
note For removal and installation of the wiper and washer switch, refer to GROUP 54A, Column switch .

INSTALLATION SERVICE POINTS

>>A<< REAR WIPER BLADE INSTALLATION

caution Use a curved backing like that shown for the backing of a wiper blade to ensure sustained wiper wiping performance.

>>B<< GROMMET INSTALLATION

Install so that the mating mark on the grommet (triangle) is aligned with the mark (circle) on the back door glass.

>>C<< REAR WIPER ARM AND BLADE ASSEMBLY INSTALLATION

Install so that the end of the wiper blade stops at the specified position.
Standard value (A): Align wiper blade with defogger lower line.
