INSPECTION

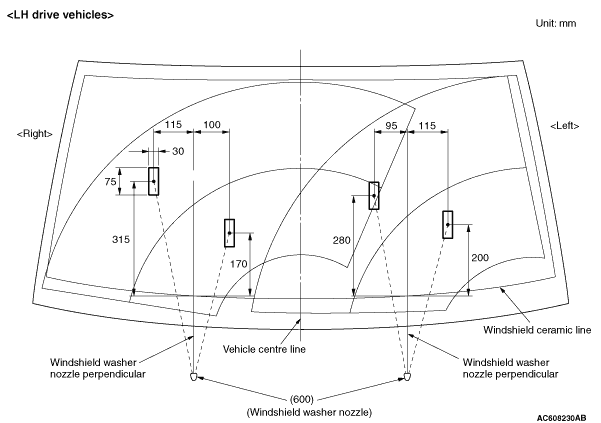

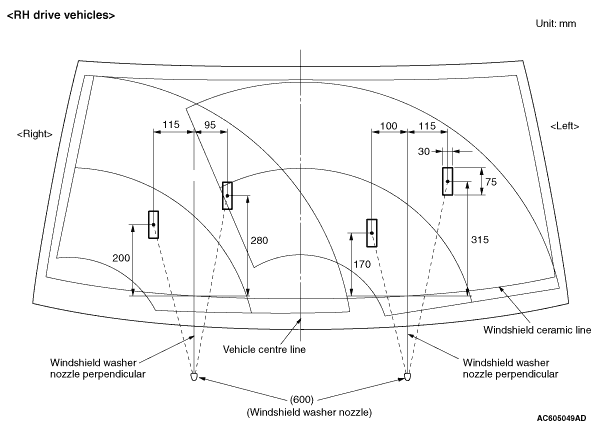

WINDSHIELD WASHER FLUID EJECTION CHECK

note Use special tool Adjustment tool, washer nozzle (MB992326) to adjust the splashing points of the nozzle.

ADJUSTMENT OF THE JET TYPE WASHER NOZZLE INJECTION POSITION
caution Adjust the splashing position within the specified adjustment range, otherwise the windshield cannot be washed properly.
1.Use special tool Adjustment tool, washer nozzle (MB992326) to adjust the splashing points of the nozzle.

2.Insert the jet type washer nozzle adjusting side of the special tool Adjustment tool, washer nozzle (MB992326) into the injection part of the washer nozzle as shown in figure (A).

3.Move the special tool Adjustment tool, washer nozzle (MB992326) up and down to adjust the angle of the washer nozzle as shown in figure (B).




WINDSHIELD WASHER SWITCH CHECK
Check the windshield washer switch from the ETACS diagnosis codes for proper operation (Refer to GROUP 54A, ETACS ).
