REMOVAL AND INSTALLATION


caution For the removal of the headlining, refer to GROUP 52B, Service Precautions and Side and Curtain Air Bag Module .

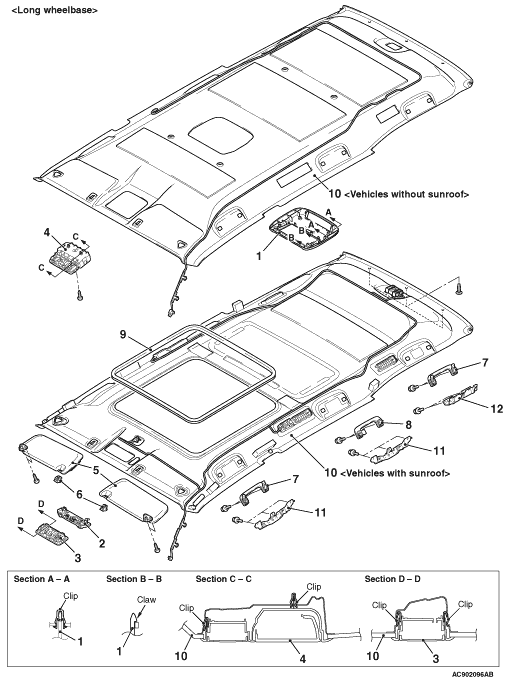

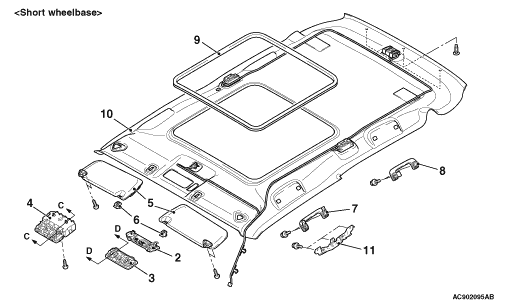

Removal steps


·
 Quarter trim upper, centre pillar trim upper, front pillar trim (Refer to ).


1.
 Rear monitor bezel <Vehicles with rear monitor>


2.
 Security alarm sensor assembly <Vehicles with security alarm>
<<A>>
3.
 Front room lamp assembly <Vehicles without sunglasses holder>
<<A>>
4.
 Front room lamp assembly <Vehicles with sunglasses holder>


5.
 Sunvisor
<<B>>
6.
 Sunvisor holder


7.
 Assist grip


8.
 Assist grip coat hanger


9.
 Sunroof lid inner weather strip <Vehicles with sunroof>
<<C>>
10.
 Headlining assembly


11.
 Assist grip bracket front


12.
 Assist grip bracket rear

REMOVAL SERVICE POINTS

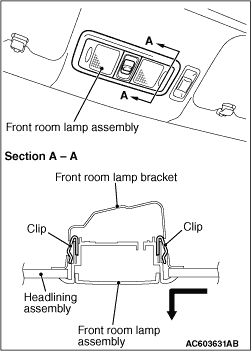

<<A>> FRONT ROOM LAMP ASSEMBLY REMOVAL

Slide down the front room lamp assembly by pushing it forwards to disengage the front room lamp assembly from the front room lamp bracket. Then remove the front room lamp assembly.

<<B>> SUNVISOR HOLDER REMOVAL


  1. Remove the sunvisor holder cover, insert a 6 mm L-shaped hexagon wrench to disengage the sunvisor holder side claws.
  2. Pull out the sunvisor into the direction shown to remove the sunvisor holder.

<<C>> HEADLINING ASSEMBLY REMOVAL

To remove the clip, insert a vinyl cord into a clearance between the clip and the headlining, and pass it around the clip. Then, pull out the clip downwards while pulling the vinyl cord.
