REMOVAL AND INSTALLATION


caution SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B, Service Precautions and Seat Belt with Pre-tensioner .

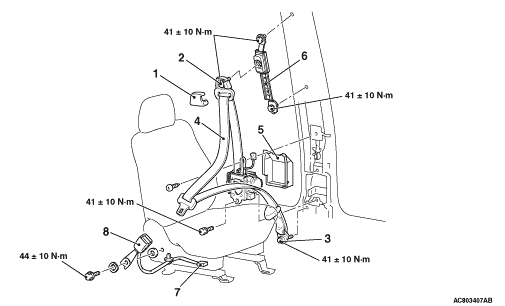

Outer seat belt removal steps


1.
 Sash guide cover


2.
 Seat belt shoulder anchor bolt


3.
 Seat belt lower anchor bolt


·
 Lower quarter trim <Short wheelbase> (Refer to ).


·
 Centre pillar trim <Long wheelbase> (Refer to ).


4.
 Outer seat belt


5.
 Front seat belt cover


6.
 Shoulder anchor adjuster



Inner seat belt removal steps


·
 Front seat assembly (Refer to ).


7.
 Seat belt switch harness connector


8.
 Inner seat belt
