INSPECTION


warning If any problems, replace the sensor.

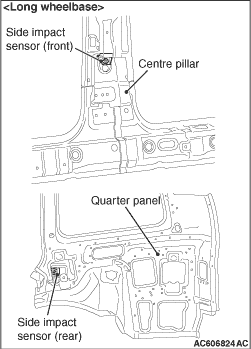

1.Check the side impact sensor and bracket for dents, cracks or deformation.
2.Check the connector for damage, and terminal for deformation.
3.Check the centre pillar and the quarter inner panel for deformation or corrosion.
note For the checks other than the items above, refer to Troubleshooting (Refer to ).
