Use the M.U.T.-III to diagnose the CAN bus lines.
|
|
|
Q.
Is the check result normal?
|
|
|
Repair the CAN bus line (Refer to GROUP 54D, Diagnosis ).
|
|
|
|
|
|
Check again if the diagnosis code is set.
|
|
|
(1)Erase the diagnosis code.
|
|
|
(2)Ignition: "LOCK" (OFF) position to "ON"
|
|
|
(3)On completion, check that the diagnosis code is not reset.
|
|
|
Q.
Is the diagnosis code set?
|
|
|
There is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).
|
|
|
|
|
|
(1)Disconnect the negative battery terminal.
|

|

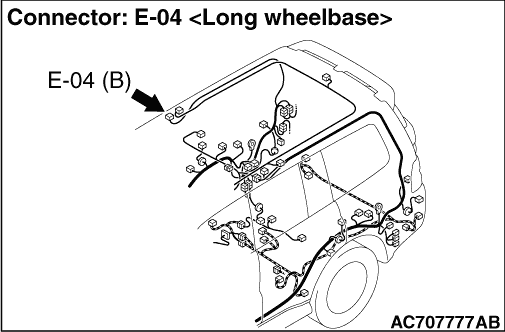

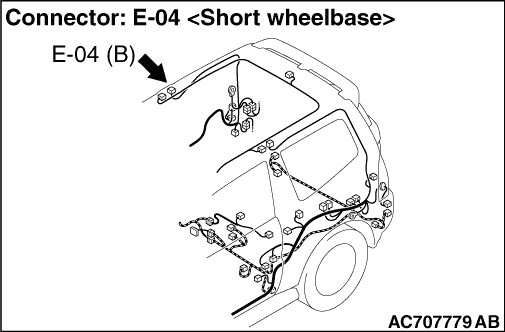

(2)Disconnect curtain air bag module connector E-04. Use a flat-tipped screwdriver to unlock the locking button at the curtain air bag module connector by withdrawing it toward you in two stages, and then disconnect the connector.
|

|
(3)Connect special tool dummy resistor (MB991865) to special tool resistor harness (MB991884). (4)Connect special tool (MB991884) to the E-04 curtain air bag module connector. (5)Connect the negative battery terminal. (6)Erase the diagnosis code from memory, and check the diagnosis code.
Q.
Is diagnosis code B1442 set?
Go to Step 4.
Replace the curtain air bag module (RH) (Refer to ).
|
|
|
(1)Disconnect the negative battery terminal.
|
|
|

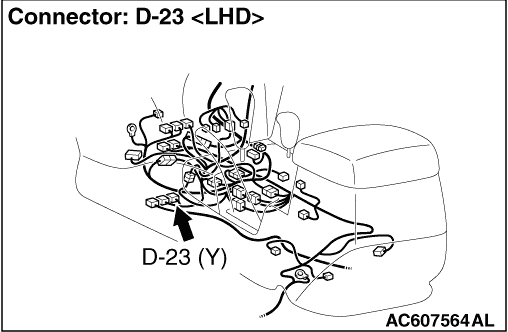

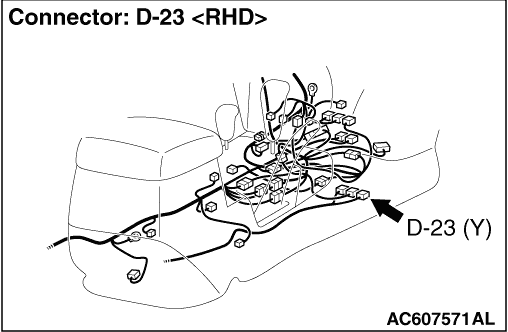

(2)Disconnect SRS-ECU connector D-23.
| danger |
To prevent the air bag from deploying unintentionally, disconnect the curtain air bag module (RH) connector E-04 to short the squib circuit.
|
|

|
(3)Disconnect curtain air bag module connector E-04. Use a flat-tipped screwdriver to unlock the locking button at the curtain air bag module connector by withdrawing it toward you in two stages, and then disconnect the connector.
|

|
(4)
| caution |
Insert an insulator such as a cable tie to a depth of 4 mm or more, otherwise the short spring will not be released.
|
Insert a cable tie [3 mm wide, 0.5 mm thick] between terminals 61and 62, and the short spring to release the short spring. (5)
| caution |
Do not insert a test probe into the terminal from its front side directly as the connector contact pressure may be weakened.
|
Check for continuity between D-23 harness side connector terminals 61, 62 and body earth. OK: Open circuit
Q.
Is the check result normal?
Go to Step 5.

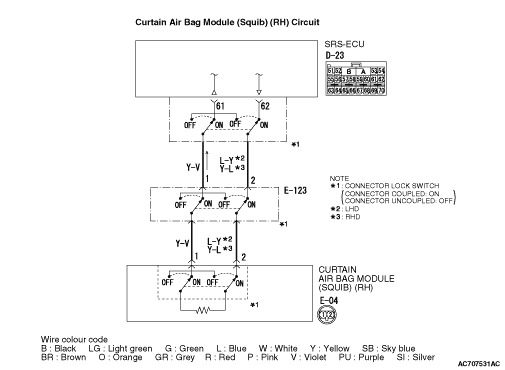

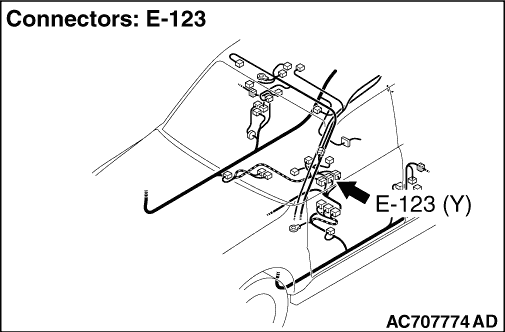

Repair the harness wire between SRS-ECU connector D-23 (terminal No.61and 62) and curtain air bag module (RH) connector E-04 (terminal No.1 and 2).
|
|
|
Q.
Is diagnosis code B1442 set?
|
|
|
Replace the SRS-ECU (Refer to ).
|
|
|
|
|
|
An intermittent malfunction is suspected (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).
|
|
|
|
