Use the M.U.T.-III to diagnose the CAN bus lines.
|
|
|
Q.
Is the check result normal?
|
|
|
Repair the CAN bus line (Refer to GROUP 54D, Diagnosis ).
|
|
|
|
|
|
Check again if the diagnosis code is set.
|
|
|
(1)Erase the diagnosis code.
|
|
|
(2)Ignition: "LOCK" (OFF) position to "ON"
|
|
|
(3)On completion, check that the diagnosis code is not reset.
|
|
|
Q.
Is the diagnosis code set?
|
|
|
There is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).
|
|
|
|
|
|
Q.

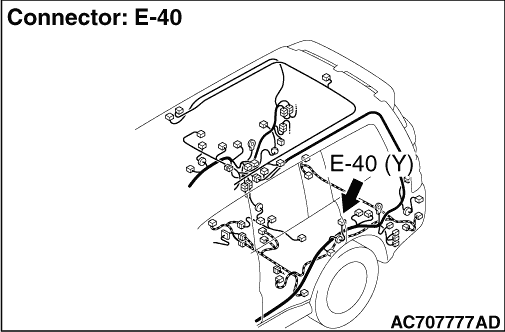

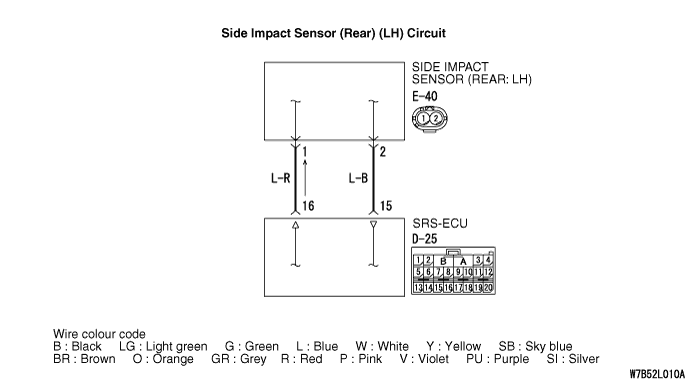

Are the harness wires between SRS-ECU connector D-25 (terminal No.15 and 16) and side impact sensor (rear) (LH) connector E-40 (terminal No.2 and 1) in good condition?
|
|
|
Repair the harness wires between SRS-ECU connector D-25 (terminal No.15 and 16) and side impact sensor (rear) (LH) connector E-40 (terminal No.2 and 1).
|
|
|
|
|
|
(1)Disconnect the negative battery terminal.
|
|
|
(2)Alternate the side impact sensor (rear) (LH) and the side impact sensor (rear) (RH), and then install the alternated sensor.
|
|
|
(3)Connect the negative battery terminal.
|
|
|
(4)Erase the diagnosis code from memory, and check the diagnosis code.
|
|
|
Q.
Is diagnosis code B1447 set?
|
|
|
Replace the side impact sensor (rear) (LH) with a new one (Refer to ).
|
|
|
|
|
|
Q.
Is diagnosis code B1457 set?
|
|
|
Replace the SRS-ECU (Refer to ).
|
|
|
|
|
|
An intermittent malfunction is suspected (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).
|
|
|
|
