REMOVAL AND INSTALLATION


note When replacing the battery of the vehicles with sub battery, always replace the main and sub battery at the same time. If the batteries are not replaced at the same time, the service lives will be shorter.
caution If the battery current sensor or engine-ECU is replaced, make the battery current sensor learn the zero point. (Refer to GROUP 00, Precautions Before Service - Battery Current Sensor Calibration .)

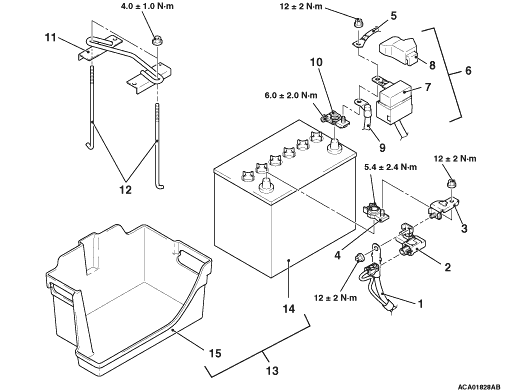

<3200 - EUROPE (HIGH POWER)>



Removal steps


1.
 Battery (-) terminal connection harness


2.
 Battery current sensor


3.
 Battery terminal plate


4.
 Battery (-) terminal


5.
 Battery (+) terminal connection harness <Vehicles with sub battery>


6.
 Fusible link box assembly


7.
 Fusible link box


8.
 Battery terminal cap


9.
 Battery (+) terminal connection harness


10.
 Battery (+) terminal


11.
 Battery holder


12.
 Battery L-bolt


13.
 Battery and battery box


14.
 Battery


15.
 Battery box

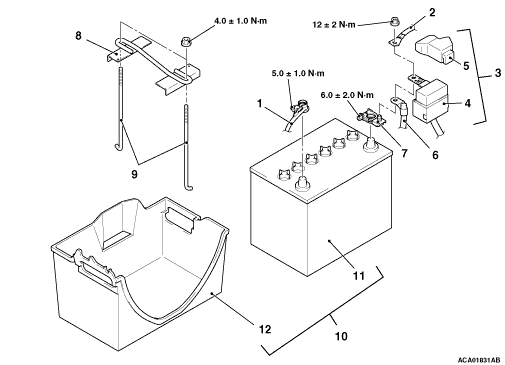

<EXCEPT 3200 - EUROPE (HIGH POWER)>



Removal steps


1.
 Battery (-) terminal connection harness


2.
 Battery (+) terminal connection harness <Vehicles with sub battery>


3.
 Fusible link box assembly


4.
 Fusible link box


5.
 Battery terminal cap


6.
 Battery (+) terminal connection harness


7.
 Battery (+) terminal


8.
 Battery holder


9.
 Battery L-bolt


10.
 Battery and battery box


11.
 Battery


12.
 Battery box

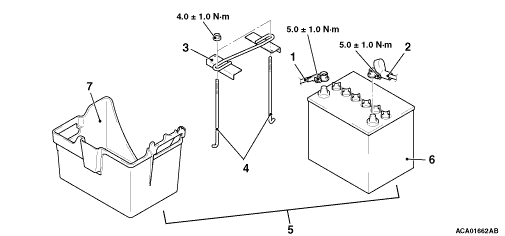

<VEHICLES WITH SUB BATTERY - OPTION>



Removal steps


1.
 Battery (-) terminal connection harness


2.
 Battery (+) terminal connection harness


3.
 Battery holder


4.
 Battery L-bolt


5.
 Battery and battery box


6.
 Battery


7.
 Battery box
