Inspection Procedure 5: Check the power supply and earth circuit to the immobilizer-ECU. <3000, 3800>










COMMENTS ON TROUBLE SYMPTOM
PROBABLE CAUSES
DIAGNOSIS PROCEDURE |
STEP 1. Connector check: D-310 key reminder switch connector |
Q.
Is the check result normal?
|
Go to Step 2. |
|
Repair the defective connector. |
|
STEP 2. Voltage measurement at key reminder switch connector D-310 in order to check the battery circuit of power supply system to the key reminder switch. |
| (1)Disconnect the key reminder switch connector D-310 and measure the voltage at key
reminder switch connector D-310 harness side. |
| (2)Turn the ignition switch to “ON” position. |
| (3)Measure the voltage between terminal 5 and earth. OK: System voltage |
Q.
Is the check result normal?
|
Go to Step 5. |
|
Go to Step 3. |
|

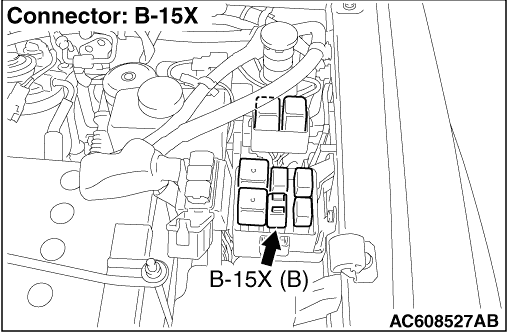

STEP 3. Connector check: B-15X engine control relay connector |
Q.
Is the check result normal?
|
Go to Step 4. |
|
Repair the defective connector. |
|
STEP 4. Check the wiring harness between B-15X engine control relay connector terminal No.1 and D-310 key reminder switch connector terminal No.5. |
|
|
Q.
Is the check result normal?
|
Go to Step 5. |
|
Repair the wiring harness. |
|
STEP 5. Resistance measurement at key reminder switch connector D-310 to check the earth circuit to the key reminder switch connector. |
| (1)Disconnect the key reminder switch connector D-310 and measure the resistance at
key reminder switch connector D-310 harness side. |
| (2)Measure the resistance between terminal 3 and earth. OK: Continuity exists (2 Ω or less) |
Q.
Is the check result normal?
|
The procedure is complete. |
|
Go to Step 6. |
|
STEP 6. Check the wiring harness between D-310 key reminder switch connector terminal No.3 and earth. |
|
|
Q.
Is the check result normal?
|
The procedure is complete. |
|
Repair the wiring harness. |
|

Repair the defective connector.
