REMOVAL AND INSTALLATION

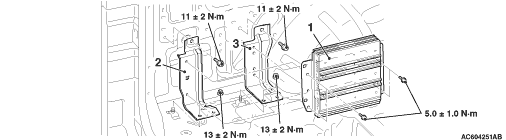

LONG WHEELBASE



Removal Steps


·
 Lower quarter trim (LH) (Refer to GROUP 52A Interior Trim ).


·
 Rear speaker box assembly (Refer to ).


1.
 Audio amplifier


2.
 Audio amplifier rear bracket


3.
 Audio amplifier front bracket

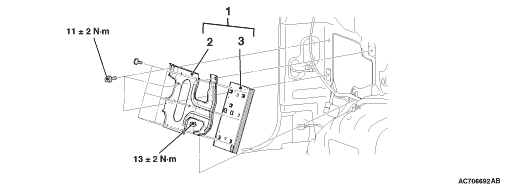

SHORT WHEELBASE



Removal Steps


·
 Lower quarter trim (LH) (Refer to GROUP 52A Interior Trim ).


1.
 Audio amplifier/Audio amplifier bracket


2.
 Audio amplifier bracket


3.
 Audio amplifier
