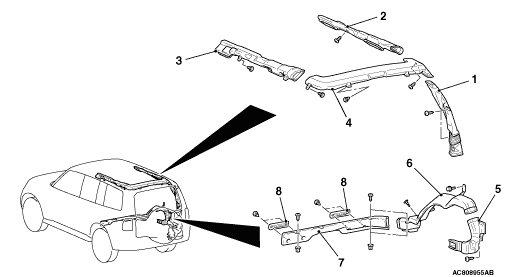

Roof duct, rear pillar duct removal steps
|
|
|
·
|
Rear pillar trim (Refer to GROUP 52A, Quarter Trim  ).
|
|
|
1.
|
Pillar duct
|
|
|
·
|
Headlining (Refer to GROUP 52A, Headlining ).
|
|
|
2.
|
Side roof duct RH
|
|
|
3.
|
Side roof duct LH
|
|
|
4.
|
Rear roof duct
|
|
|
|
Floor duct removal steps
|
|
|
·
|
Quarter trim lower (Refer to GROUP 52A, Quarter Trim ).
|
|
|
·
|
Third seat assembly (Refer to 52A, Third Seat Assembly ).
|
|
|
5.
|
Rear Quarter duct A
|
|
|
6.
|
Rear floor duct A
|
|
|
7.
|
Rear floor duct B
|
|
|
8.
|
Rear heater grille
|
|
