Inspection Procedure 5: The outside/inside air changeover is impossible.
















COMMENTS ON TROUBLE SYMPTOM
When inside air cannot be changed to outside air vice versa even if its changeover switch is on, the outside/inside air selection damper control motor system may be defective.

PROBABLE CAUSES

  • Malfunction of the outside/inside air selection damper control motor
  • Damaged the wiring harness or connectors
  • Malfunction of the control panel sub assembly
  • Malfunction of the A/C-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check the operation of the heater control panel
Check that the A/C switch, rear window defogger switch and air volume control dial can operate.

Q. Is the check result normal?
Go to Step 2.
Inspection Procedure 14: Refer to A/C-ECU power supply system .

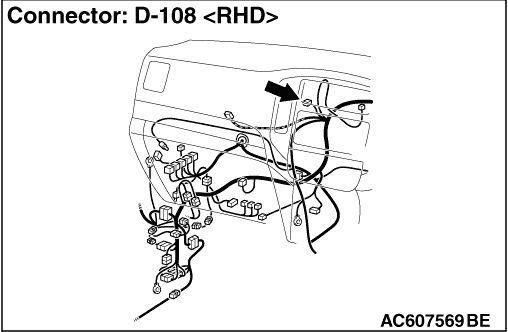

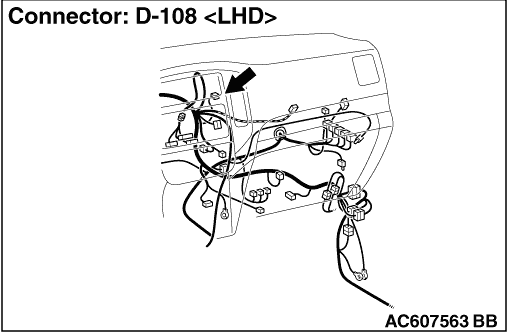

STEP 2. Connector check: D-108 outside/inside air selection damper control motor connector.

Q. Is the check result normal?
Go to Step 3.
Repair the connector.

STEP 3. Voltage measurement at D-108 outside/inside air selection damper control motor connector.
(1)Disconnect the connector, and measure at the wiring harness side.
(2)Turn the ignition switch to the ON position.
(3)Measure the voltage between terminal 1 and body earth.
OK: System voltage

Q. Is the check result normal?
Go to Step 5.
Go to Step 4.

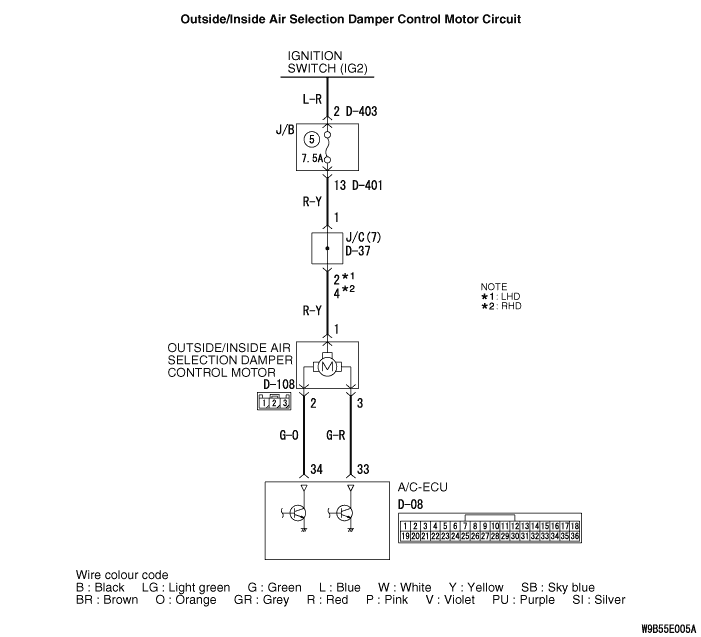

STEP 4. Check the wiring harness between D-108 outside/inside air selection damper control motor connector terminal No.1 and the ignition switch (IG2).

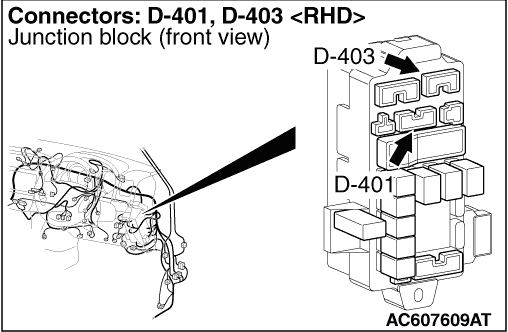

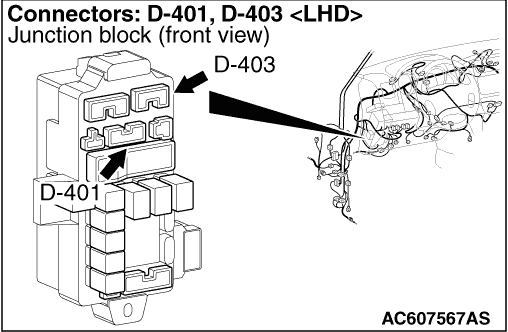

note Prior to the wiring harness inspection, check junction block connectors D-401, D-403 and joint connector D-37, and repair if necessary.

  • Check the motor power supply line for open circuit.

Q. Is the check result normal?
The trouble can be an intermittent malfunction (Refer to GROUP 00, How to Cope with Intermittent Malfunction ).
Repair the wiring harness.

STEP 5. Check the outside/inside air selection damper control motor
Refer to .

Q. Is the check result normal?
Go to Step 6.
Replace the outside/inside air selection damper control motor.

STEP 6. Connector check: D-108 A/C-ECU connector

Q. Is the check result normal?
Go to Step 7.
Repair the connector.

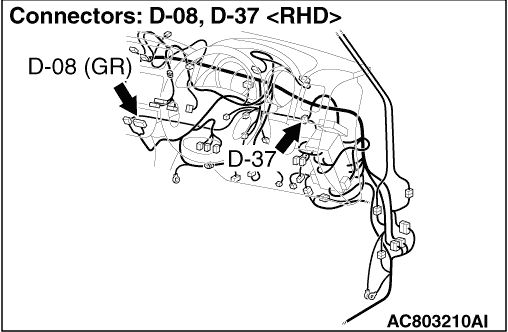

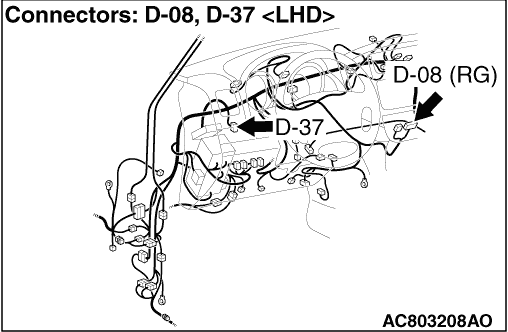

STEP 7. Check the wiring harness between D-08 A/C-ECU connector (terminals 34 and 33) and D-108 outside/inside air selection damper control motor connector (terminals 2 and 3).

  • Check the motor activating lines for open and short circuit.

Q. Is the check result normal?
Go to Step 8.
Repair the wiring harness.

STEP 8. Replace the control panel sub assembly and check the trouble symptom
Check that the outside/inside air selection damper control motor operates normally.

Q. Is the check result normal?
This diagnosis is complete.
Replace the A/C-ECU.
