Inspection Procedure 13: The temperature of rear air conditioner cannot be controlled <Dual A/C>

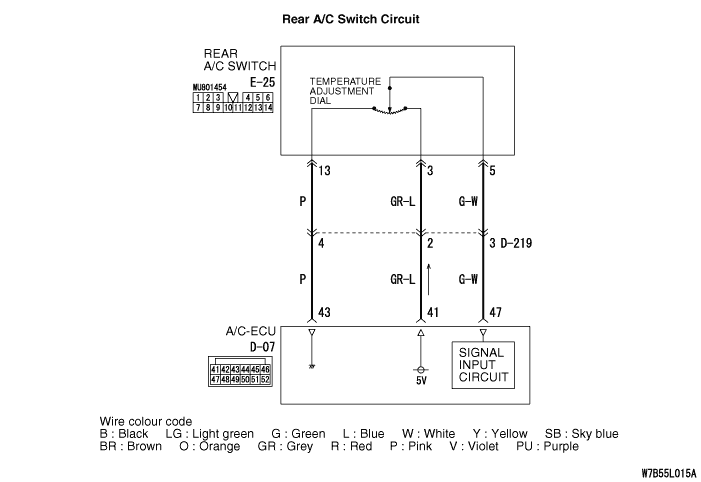

CIRCUIT OPERATION
When the temperature adjustment of rear A/C cannot be performed, the circuit between the rear A/C switch and A/C-ECU may have a failure.

PROBABLE CAUSES

  • Malfunction of the A/C-ECU
  • Malfunction of the rear A/C switch
  • Damaged the wiring harness or connectors

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code
Check that the diagnosis code related to the A/C is not set.

Q. Is the check result normal?
Go to Step 2.
Carry out the diagnosis code procedures. Refer to .

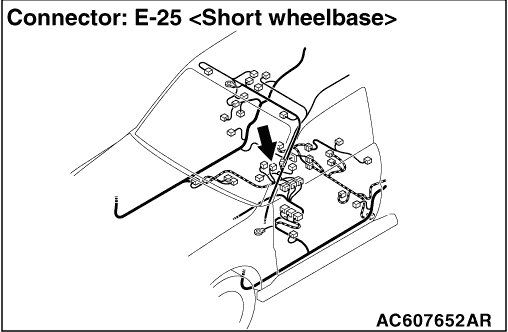

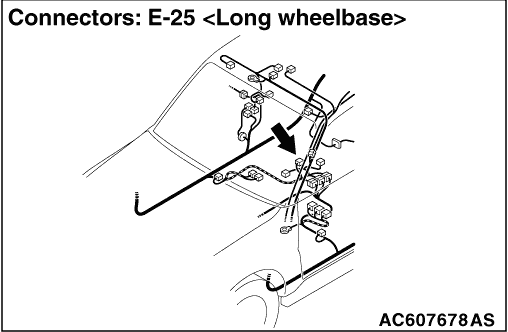

STEP 2. Connector check: E-25 rear A/C switch connector

Q. Is the check result normal?
Go to Step 3.
Repair the connector.

STEP 3. Check the rear A/C switch.
Refer to .

Q. Is the rear A/C switch in good condition?
Go to Step 4.
Replace the rear A/C switch.

STEP 4. Connector check: D-07 A/C-ECU connector

Q. Is the check result normal?
Go to Step 5.
Repair the connector.

STEP 5. Check the wiring harness between E-25 rear A/C switch connector (terminals 5, 3 and 13) and D-07 A/C-ECU connector (terminals 47, 41 and 43).
note Prior to the wiring harness inspection, check intermediate connectors D-219, and repair if necessary.

  • Check the A/C-ECU input line for open and short circuit.

Q. Is the check result normal?
Replace the A/C-ECU.
Repair the wiring harness.
