GENERAL INFORMATION




  • A snap ring method of securing the journal bearing for the universal joint is adopted.
  • The BJ is used to reduce power train system vibration.
  • The rear propeller shaft has CFRP (carbon fibre-reinforced plastic) tube with an impact absorbing mechanism (collapsible) improve safety in the event of an impact.
note
  • BJ: Birfield Joint

SPECIFICATIONS


Item
 3200
 3800
Front propeller shaft
 Type
 2-joint type (universal joint and BJ) propeller shaft
Length* × Outside diameter mm
    701 × 50.8 <M/T>,
    786 × 50.8 <A/T>

 685 × 50.8
Rear propeller shaft
 Type
 2-joint type (BJ) propeller shaft
Length* × Outside diameter mm
 Short wheelbase
    540 × 79.1 <M/T>,
    446 × 79.1 <A/T>

 540 × 79.1
Long wheelbase
    775 × 79.1 <M/T>,
    681 × 79.1 <A/T>

 775 × 79.1
Universal joint
 Type
 Cross type (snap ring method)
Bearing
 Lubrication type needle roller bearing
Journal diameter mm
 14.689
 14.689
note *:The propeller shaft length indicates the length between the centre points of each joint.

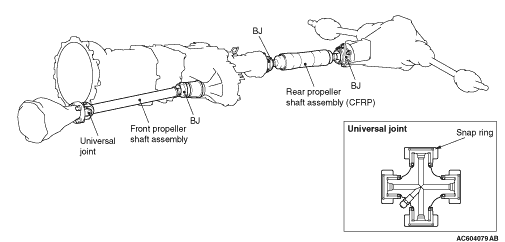

CONSTRUCTION DIAGRAM
