CODING LIST


caution With the ETACS functions being customised, if any of the ETACS-ECU variant coding and option coding items are changed, the customised contents are reset. In such case, the functions need to be recustomised.

VARIANT CODING
The coding data can be checked by operating M.U.T.-III.


note For details on how to use the M.U.T.-III, refer to the "M.U.T.-III operation manual."
1.Ensure that the ignition switch is at the "LOCK" (OFF) position.
2.Start up the personal computer.

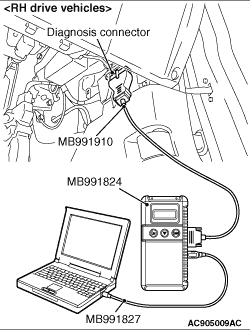

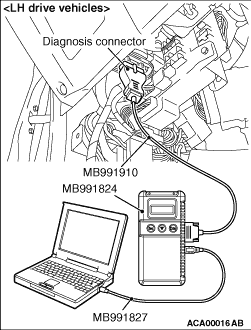

3.Connect special tool M.U.T.-III USB cable (MB991827) to Vehicle Communication Interface (V.C.I.) (MB991824) and the personal computer.
4.Connect M.U.T.-III main harness A (MB991910) to the V.C.I.
5.Connect the M.U.T.-III main harness A to the diagnosis connector.
6.Turn the V.C.I. power switch to the "ON" position.
note When the V.C.I. is energized, the V.C.I. indicator lamp will be illuminated in a green colour.
7.Start the M.U.T.-III system on the personal computer and turn the ignition switch to the "ON" position.
8.On the system selection screen, select "MPI/GDI/DIESEL" to check the engine-ECU data, "SRS-AIR BAG" to check the SRS-ECU data, and "ETACS" to check the ETACS-ECU data.
9.Select "Coding."
10.Select "Coding Information & Copy."
11.If the displayed coding information is different from the corresponding initial setting in the list, replace the ECU with a correctly coded one. For replacement of the engine-ECU, refer to GROUP 13A - Engine-ECU <4B1>, GROUP 13B - Engine-ECU <4N1>, GROUP 13D - Engine-ECU <4A9>. For replacement of the SRS-ECU, refer to GROUP 52B - SRS Control Unit . For replacement of the ETACS-ECU, refer to GROUP 54A - ETACS .

ENGINE ECU CODING DATA LIST


note The items to be displayed may differ depending on the version of the M.U.T.-III.

<4B1, 4A9>
Item name
 Initial value
Final gear ratio
5MT/6MT <MT>
6.120 <CVT>
Tyre circumference
 2155mm
IMMOBILIZER
 Present(Type A)
Auto Stop & Go (AS&G)
 Not present or present
ABS
 Not present <Vehicles with ASC>
Present <Vehicles without ASC>
A.S.C.
 Not present <Vehicles without ASC>
Present <Vehicles with ASC>
S/W variation
 No.1

<4N1>
Item name
 Initial value
Vehicle Model
 ASX/OUTLND SPORT
OSS
 Not present or present
Voltage of GLOW PLUG
 11.0V
Material of GLOW PLUG
 Ceramic
Clogged filter due to cold fuel
 Deactive
Low Temp Fuel/F stucked Spec.
 Present
DRL
 Not present or present
ABS
 Not present
A.S.C.
 Present
Discharge Lamp
 Not present or present
T/M
 M/T
Final drive
 2WD <2WD>
4WD <4WD>
FOR COLD ZONE
 Not present
IMMOBILIZER
 Type A
Power window(DR)
 Present
Power window(AS)
 Not present
Power window(RR)
 Not present
Power window(RL)
 Not present
Power window(BK)
 Not used
Sunroof
 Not present
ASG
 Not present or present
EPS
 Present
Cruise Control
 Not present
Cruise control option coding
 Not accept

SRS-ECU CODING DATA LIST


note The items to be displayed may differ depending on the version of the M.U.T.-III.
Item name
 Initial value
DR airbag squib(1st)
 Present
PS airbag squib(1st)
 Present
DR airbag squib(2nd)
 Not present
PS airbag squib(2nd)
 Present
DR pretensioner squib
 Present
PS pretensioner squib
 Present
PS lap pretensioner squib
 Not present or Present
RH side airbag squib
 Not present or Present
LH side airbag squib
 Not present or Present
RH curtain airbag squib
 Not present or Present
LH curtain airbag squib
 Not present or Present
DR knee airbag squib
 Not present or Present
Occupant classification module
 Not present
DR seat position sensor
 Not present
Seatbelt warning indicator(CAN)
 Not present
PS cut off SW
 Not present or Present
DR buckle SW (mecha)
 Not present
DR buckle SW (hall)
 Not present
PS buckle SW (mecha)
 Not present
PS buckle SW (hall)
 Not present
PS cut off lamp
 Not present or Present
Disposal
 Present
RH front G sensor
 Present
LH front G sensor
 Present
RH side sensor B-pillar
 Not present or Present
LH side sensor B-pillar
 Not present or Present
RH side sensor C-pillar
 Not present
LH side sensor C-pillar
 Not present
Roll over sensor
 Not present
Crash parameter flag(#0)
 ON
Crash parameter flag(#1)
 OFF
Crash parameter flag(#2)
 OFF
Crash parameter flag(#3)
 OFF
Crash parameter flag(#4)
 OFF
Crash parameter flag(#5)
 OFF
Crash parameter flag(#6)
 OFF
Crash parameter flag(#7)
 OFF

ETACS-ECU CODING DATA LIST


note The items to be displayed may differ depending on the version of the M.U.T.-III.
Item name
 Initial value
2WD
 4WD
Vehicle line
 ASX/OUTLND SPORT
 ASX/OUTLND SPORT
Model year
 (Displays the model year)
 (Displays the model year)
SST oil cooling fan
 Not present
 Not present
Destination
 EXP or EUR
 EUR
Transmission
 5MT <5M/T>
 5MT <5M/T>
6MT <6M/T>
 6MT <6M/T>
CVT <CVT>
 CVT <CVT>
Engine type
 1.8L MPI D4/S4 <4B10>
 2.0L MPI D4/S4 <4B11>
2.0L MPI D4/S4 <4B11>
 1.8L DI-DC MIVEC <4N1>
1.8L DI-DC MIVEC <4N1>
1.6L D4 MPI VVT <4A9>
Engine power
 Normal
 Normal
Handle side
 LHD or RHD
 LHD or RHD
Chassis Type for A.S.C.
 Type 4
 Type 4
OSS
 Not present or Present
 Not present or Present
Final drive
 Front Drive
 4WD FF Base
Transfer
 2WD
 ECC
IG off delay control
 Disabled
 Disabled
Dead lock operation customize
 Disabled or Enable(d.twice)
 Disabled or Enable(d.twice)
After wipe customize
 Enabled(def.D) or Enabled(def.E)
 Enabled(def.D) or Enabled(def.E)
Tire circumference
 2155mm
 2155mm
Fuel tank
 Not used
 Not used
DRL type
 DRL not present or Independent DRL
 Independent DRL
Smart entry system
 Not Present or Type B
 Not Present or Type B
TPMS
 Not present
 Not present
Keyless entry*
 Present
 Present
Airbag Auto Hazard
 Not present
 Not present
Immobilizer
 Type A
 Type A
Corner sensor
 Not present or Present
 Not present or Present
Head lamp auto leveling device
 Not present or Present
 Not present or Present
Oil level warning
 Not warning or Warning
 Not warning or Warning
Water separate warning
 Not warning or Warning
 Not warning or Warning
Speed meter scale
 Not used
 Not used
Idle neutral control
 Not present
 Not present
Security alarm sensor
 Not present or Present
 Not present or Present
T/M oil cooler
 Not present or Present(A)
 Not present or Present(A)
Remote headlamp ON
 Disabled
 Disabled
Side air bag
 Not present or Present
 Not present or Present
ACC power auto cut
 Default enabled
 Default enabled
Number of speaker*
 Premium or Speaker less or 4 speakers or 6 speakers
 Premium or 4 speakers or 6 speakers
Seat material*
 Fabric or Leather
 Fabric or Leather
Auto lamp control*
 No/Cng Ng or Hi RLS/chg Ng
 No/Cng Ng or Hi RLS/chg Ng
Front differential
 Open
 Open
Rear differential
 Undefined
 Open
Power window type
 Type P4
 Type P4
Sun roof type
 Not present
 Not present
WCM
 Present
 Present
OCM
 Not present
 Not present
ORC
 Present
 Present
A/C
 Present
 Present
AUDIO*
 Not present or Present
Not present or Present
AND*
 Not present or Present
Not present or Present
Siren answer
 Disabled
 Disabled
Security alarm siren
 Not present or Present
 Not present or Present
CAMERA
 Not present
 Not present
Corner sensor control unit
 Not present or Present
 Not present or Present
Electric Slide door (Left)
 Not present
 Not present
Electric Slide door (Right)
 Not present
 Not present
ETG
 Not present
 Not present
ESS ECU
 Not present
 Not present
HFM*
 Not present
 Not present
Inteligent/Comfort washer costom
 Enabled(def.D) or Enabled(def.E)
 Enabled(def.D) or Enabled(def.E)
Head Lamp Leveling system type
 Type 2
 Type 2
Rear wiper mode
 With Lo control
 With Lo control
KOS door entry type
 Switch
 Switch
Rear wiper by reverse customize
 Enabled(d.FR/RR)
 Enabled(d.FR/RR)
ABS
 Not present or Present
 Not present
A.S.C.
 Not present or Present
 Present
Auto fold mirror
 SPD/Not present or Keyless/KOS
 SPD/Not present or Keyless/KOS
SAS
 Not present or Present
 Present
4WD/AWC
 Not present
 Present
TCM
 Not present or Present
 Not present or Present
ACTV_STB
 Not used
 Not used
Door unlock by IG lock customize
 Enabled(def.D)
 Enabled(def.D)
Shift lock
 Not present or Present
 Not present or Present
EPS
 Present
 Present
ACDAYC
 Not present
 Not present
Coming home light customize
 Enabled(def.E)
 Enabled(def.E)
Welcome light customize
 Enabled(def.D) or Enable(d.Small)
 Enabled(def.D) or Enable(d.Small)
Indirect lamp
 Not present or Present
 Not present or Present
Power window Dr
 Present
 Present
Power window As
 Not present
 Not present
Power window RR
 Not present
 Not present
Power window RL
 Not present
 Not present
ESS by stop lamp
 Not present
 Not present
Sun roof
 Not present
 Not present
RLS*
 Not present or Present
 Not present or Present
Outer buzzer volume customize
 Disabled or Enable
 Disabled or Enable
IG key illumination
 W/ getting off
 W/ getting off
Turn signal bulb
 21W+21W+5W or 21/21/21/21/0.36
 21W+21W+5W or 21/21/21/21/0.36
Rear wiper
 Enable
 Enable
Fold mirror
 Disabled or Enable
 Disabled or Enable
Head lamp
 4 beams
 4 beams
KOS function customize by Disp.
 Disabled
 Disabled
Head lamp washer
 Disabled or Popup1 w/ washer
 Disabled or Popup1 w/ washer
Front fog lamp mode
 B spec.
 B spec.
Front fog lamp*
 Not present or Present
 Not present or Present
Rear fog lamp*
 NotPresent/ChgOk or Present/Chg Ng
 Present/Chg Ng
Room lamp delay timer/door & H/L
 Short
 Short
Room lamp by H/L
 In dimming or Full
 Full
Gate/Trunk lamp
 Mode-2 (cargo)
 Mode-2 (cargo)
Head lamp auto cut mode
 B spec.
 B spec.
Head lamp auto cut
 Enable
 Enable
Door lock system
 B-Spec/exceptUSH or E-spec/exceptDLH
 B-Spec/exceptUSH or E-spec/exceptDLH
Auto door lock/unlock
 Disabled
 Disabled
key remainder unlock
 Disabled or A-spec/Dr only
 Disabled
Horn type*
 Dual horn
 Dual horn
Gate/trunk opener mode
 Present (Type 1)
 Present (Type 1)
Cooling fan
 Relay control
 Relay control
Security alarm mode
 Not present or A-spec
 Not present or A-spec
Security alarm function
 NotPresent/ChgNg or Present/Chg Ok
 NotPresent/ChgNg or Present/Chg Ok
Pre-alarm
 Present or Not present
 Not present
Multi mode RKE
 Disabled or Enable
 Disabled or Enable
Gate/Trunk
 Gate type
 Gate type
Manner Switch*
 NotPresent/ChgNg
 NotPresent/ChgNg
Remote engine starter*
 Present/Chg Ok
 Present/Chg Ok
Panic Alarm
 Disabled
 Disabled
Right side view camera
 Not present
 Not present
Front wiper*
 Speed Sensitive or Rain Sensitive
 Speed Sensitive or Rain Sensitive
Comfort flasher type
 Present/Chg Ok
 Present/Chg Ok
Room lamp Center Switch
 Not present
 Not present
Wiper washer check bulb*
 Present
 Present
AUDIO/S.RADIO type*
 AM MW/LW or AM 1kHz step or Other
 AM MW/LW or AM 1kHz step
H/L leveling type
 Not present or CAN com/static
 Not present or CAN com/static
AFS/ACL type
 Not present
 Not present
ESS by turn lamp
 Not present or Present
 Present
Compressor type*
 No compressor or Scroll 90cc
 Scroll 90cc
Temperature type
 Celsius
 Celsius
Rear view camera
 Not present or Present
 Not present or Present
Nose view camera
 Not present
 Not present
Left side view camera
 Not present
 Not present
Average speed
 Available
 Available
Vehicle language status
 English or Russia
 English or Russia
Fuel amount
 Not used
 Not used
Fuel consumption scale
 L/100km or MPG (UK)
 L/100km or MPG (UK)
Seatbelt reminder logic
 EU (NCAPV52)
 EU (NCAPV52)
Coolant temp gauge threshold
 Normal
 Normal
Frost warning threshold
 EUR or EXP
 EUR or EXP
Distance to empty
 Available
 Available
Average fuel consumption
 Available
 Available
Instant fuel consumption
 Available
 Available
Time travelled
 Not available
 Not available
Distance travelled
 Not available
 Not available
Fuel used
 Not available
 Not available
Trip autoreset IG ON
 Available
 Available
Variable Speed Alarm
 Not available
 Not available
Rest reminder
 Available
 Available
Instant speed
 Not available
 Not available
Seat belt reminder control type
 Non AABT
 Non AABT
Seat belt reminder flashing
 Available
 Available
Seat belt reminder indicator
 D&P independent
 D&P independent
Reverse alarm
 Not available
 Not available
Key reminder
 Not available
 Not available
Lighting monitor
 Available
 Available
GCC speed alarm
 Not available
 Not available
Condition buzzer
 Not available
 Not available
Rent-a-car mode IG-OFF always
 Available
 Available
Fuel tank type
 Normal
 Normal
Service reminder schedule table
 GCC/EXP 10 or EU 10 or EU 11
 EU 10 or EU 11
GCC speed alarm indicator
 Not present
 Not present
TPMS information
 N/A
 N/A
Horn chirp by keyless
 NotPresent/ChgNg
 NotPresent/ChgNg
S/R Unlock Output
 Not present
 Not present
Trailer turn detection
 Present
 Present
Shift Lever
 Not present
 Not present
AFS/ACL/Leveling
 Not present or Present
 Not present or Present
Satellite Radio*
 Not present
 Not present
Auto Stop & Go (AS&G)
 Not present or Present
 Not present or Present
Display opening type
 MMC
 MMC
GSI system
 Not present or Present
 Not present or Present
DRL function*
 Present/Chg Ng or NotPresent/ChgNg or NotPresent/ChgOk
 Present/Chg Ng or NotPresent/ChgNg or NotPresent/ChgOk
FACU
 Not present
 Not present
S-AWC Control display
 Not available
 Not available
Diesel particulate filter
 Not present or Present
 Not present or Present
Language mode
 Not available
 Not available
WSS
 Not present
 Not present
Door Unlock Mode Customize*
 Enable or Disabled
Enable or Disabled
RLS overwipe type
 Type 2
 Type 2
RLS WS type
 Type 2 (Green)
 Type 2 (Green)
INT illumi control customize
 Disabled
 Disabled
Launch gear block alarm present
 Not present
 Not present
Security sensor gain setting
 Type 1 or Type 7 or Type 8
 Type 1 or Type 7 or Type 8
Indirect lamp type
 Type 1/No present
 Type 1/No present
4WD switch type
 Undefined
 Push type
note *: The setting can be changed by the option coding. Refer to .

OPTION CODING


caution
  • If there is any item indicated by the option coding after equipment change, set ETACS-ECU so that the option coding data corresponds with the equipment content. Pay attention to that the concerned functions and systems do not work normally if the setting does not correspond with the equipment.
  • With the ETACS functions being customised, if any of the ETACS-ECU option coding items are changed, the customised contents are reset. In such case, the functions need to be recustomised.


  • How to check option coding data

  1. Connect the M.U.T.-III. Refer to .
  2. Select "MPI/GDI/DIESEL" <4B1> or "ETACS" on the system selection screen.
  3. Select "Coding."
  4. Select "Option Coding Information."
  5. Check the displayed option coding information.

  • How to change option coding data

  1. Connect the M.U.T.-III. Refer to .
  2. Select "MPI/GDI/DIESEL" <4B1> or "ETACS" on the system selection screen.
  3. Select "Coding."
  4. Select "Option Coding."
  5. Change to correct option coding data.

LIST <Engine-ECU (4B1)>
Item name
Cruise control

LIST <ETACS-ECU>
Item name
Auto lamp CNTL
Keyless
AUDIO (CAN)
Rain Light Sensor
AUDIO/S.RADIO type
Number of speaker
Seat material
Front fog lamp
Rear fog lamp
Horn type
Manner switch
Remote engine starter
AND
HFM (Hands free-ECU)
Satellite radio
Compressor type
DRL function
Wiper washer check bulb
Door Unlock Mode Customize
Front wiper
