REMOVAL AND INSTALLATION



Pre-removal Operation
  • Engine Room Under Cover Front B and Engine Room Side Cover (RH) Removal (Refer to GROUP 51 - Under Cover ).

Post-installation Operation
  • Drive belt Tension Check and Adjustment (Refer to ).
  • Engine Room Under Cover Front B and Engine Room Side Cover (RH) Installation (Refer to GROUP 51 - Under Cover ).

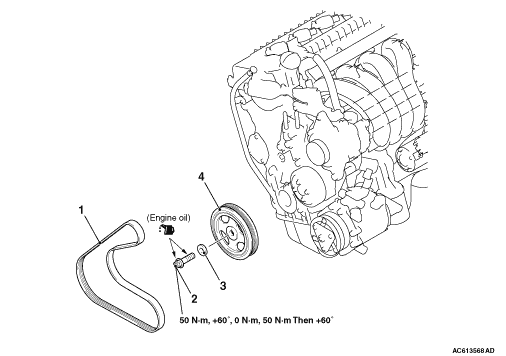

Removal steps
<<A>>
>>B<<
1.
Drive belt
<<B>>
>>A<<
2.
Crankshaft pulley centre bolt

>>A<<
3.
Crankshaft pulley washer

>>A<<
4.
Crankshaft damper pulley

REMOVAL SERVICE POINTS



<<A>> DRIVE BELT REMOVAL



1.Loosen the nut for alternator pivot bolt and alternator fixing nut.
2.
caution To reuse the drive belt, draw an arrow indicating the rotating direction (clockwise) on the back of the belt using chalk, etc.
Turn the adjusting bolt in the anti-clockwise direction (to the left) to remove the drive belt.

<<B>> CRANKSHAFT PULLEY CENTRE BOLT REMOVAL


Use the used drive belt to fix the crankshaft damper pulley in the following procedures, and remove the crankshaft pulley centre bolt.

1.
caution
  • Do not use the drive belt set up on the vehicles.
  • Do not use a cracked or damaged drive belt.
Set the used drive belt as shown and hold it with a cable band.

2.
caution Do not hang the used drive belt for the crankshaft rotation stopper on the water pump pulley.
Turning the crankshaft damper pulley to the anti-clockwise direction (to the left), loop the used drive belt around the water pump body.
3.Hold the crankshaft damper pulley and remove the crankshaft pulley centre bolt.

INSTALLATION SERVICE POINTS



>>A<< CRANKSHAFT DAMPER PULLEY/CRANKSHAFT PULLEY WASHER/CRANKSHAFT PULLEY CENTRE BOLT INSTALLATION



1.Wipe off the dirt on the crankshaft and the crankshaft damper pulley as shown in the figure using a rag.
2.After wiping off the dirt on the crankshaft and crankshaft damper pulley as shown in the figure using a rag, degrease the areas.
note Degrease them to prevent drop in the friction coefficient of the pressed area which is caused by oil adhesion.
3.Install the crankshaft damper pulley.
4.Wipe off the dirt on the crankshaft pulley washer and the crankshaft pulley centre bolt as shown in the figure using a rag.
5.Apply an adequate and minimum amount of engine oil to the thread of the crankshaft pulley centre bolt and the lower area of the flange.

6.
caution
  • Do not use the drive belt set up on the vehicles.
  • Do not use a cracked or damaged drive belt.
Set the used drive belt and hold it with a cable band as during removal.

7.
caution Do not hang the used drive belt for the crankshaft rotation stopper on the water pump pulley.
Turning the crankshaft damper pulley to the clockwise direction (to the right), loop the used drive belt around the water pump body.
8.Hold the crankshaft damper pulley and tighten the crankshaft pulley centre bolt to the specified torque.
Tightening torque: 50 N·m

9.As shown in figure A, put a paint mark on one angle of the crankshaft pulley centre bolt. Then, put a paint mark on the crankshaft damper pulley on the extended line of the angle next to the marked angle.
10.
caution
  • When the tightening angle is smaller than the specified tightening angle, the appropriate tightening capacity cannot be secured.
  • When the tightening angle is larger than the specified tightening angle, remove the bolt to start from the beginning again according to the procedure.
Tighten the crankshaft pulley centre bolt in a 60 degree angle, and check that the paint mark on the crankshaft pulley centre bolt aligns with the paint mark on the crankshaft damper pulley as shown in figure B.
11.Loosen the crankshaft pulley centre bolt fully.
12.Hold the crankshaft damper pulley and tighten the crankshaft pulley centre bolt to the specified torque.
Tightening torque: 50 N·m

13.As shown in figure A, put a paint mark on one angle of the crankshaft pulley centre bolt. Then, put a paint mark on the crankshaft damper pulley on the extended line of the angle next to the marked angle.
14.
caution
  • When the tightening angle is smaller than the specified tightening angle, the appropriate tightening capacity cannot be secured.
  • When the tightening angle is larger than the specified tightening angle, remove the bolt to start from the beginning again according to the procedure.
Tighten the crankshaft pulley centre bolt in a 60 degree angle, and check that the paint mark on the crankshaft pulley centre bolt aligns with the paint mark on the crankshaft damper pulley as shown in figure B.

>>B<< DRIVE BELT INSTALLATION



caution
  • To reuse the drive belt, install it by aligning the arrow mark on the backside of belt marked at the removal with the rotating direction.
  • Check that the notches of notched pulley and notches of drive belt are fit correctly.
  • Check that the drive belt is installed in the centre of flat surface of flat pulley.


Install the drive belt to each pulley as shown in the figure.
