REMOVAL AND INSTALLATION <4B1>


Pre-removal Operation
  • Engine Coolant Draining (Refer to ).
  • Engine Upper Cover Removal (Refer to GROUP 11A - Camshaft ).
  • Air Cleaner Assembly Removal (Refer to GROUP 15 - Air Cleaner ).

 Post-installation Operation
  • Air Cleaner Assembly Installation (Refer to GROUP 15 - Air Cleaner ).
  • Engine Upper Cover Installation (Refer to GROUP 11A - Camshaft ).
  • Engine Coolant Refilling (Refer to ).

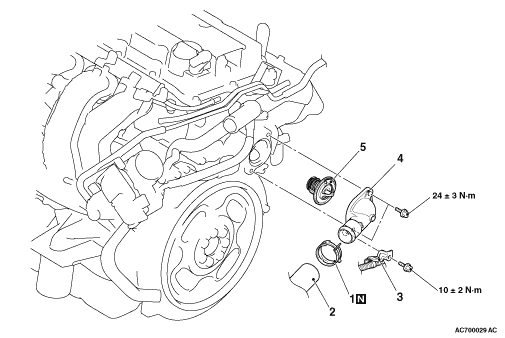

Removal steps
<<A>>
 >>B<<
 1.
 Hose clip
<<A>>
 >>B<<
 2.
 Radiator lower hose connection


3.
 Control wiring harness clamp connection <CVT>


4.
 Cooling water inlet hose fitting

>>A<<
 5.
 Thermostat

REMOVAL SERVICE POINT
For removal service points, follow the same service procedures as 10 MY OUTLANDER.

INSTALLATION SERVICE POINT
For installation service points, follow the same service procedures as 10 MY OUTLANDER.
