REMOVAL AND INSTALLATION <4B1>


caution
  • When removing or installing the air flow sensor, be careful not to apply impact to the sensor.
  • Do not reuse the air flow sensor that has been dropped.

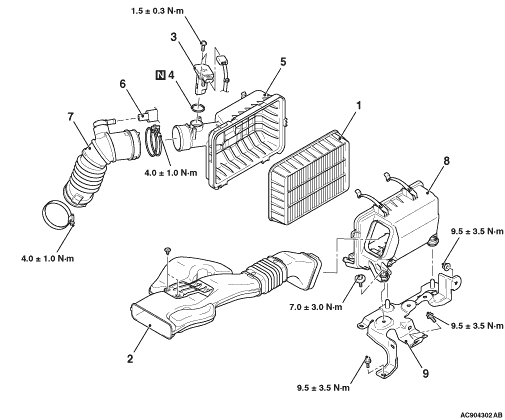

Removal steps


1.
 Air cleaner element


·
 Headlamp support upper panel cover (Refer to GROUP 51 - Front Bumper Assembly ).


2.
 Air cleaner intake duct

>>A<<
 3.
 Air flow sensor


4.
 O ring


5.
 Air cleaner cover


6.
 Breather hose connection


7.
 Air intake hose


8.
 Air cleaner body


·
 Engine-ECU (Refer to GROUP 13A - Engine-ECU ).


9.
 Air cleaner bracket

INSTALLATION SERVICE POINT

>>A<< AIR FLOW SENSOR INSTALLATION
1.Install the air flow sensor to the air cleaner cover with care not to damage the O-ring.
2.
caution Do not over-tighten. If the air flow sensor mounting screw is over-tightened, the air cleaner cover thread can be damaged.
Tighten the air flow sensor mounting screws to the specified torque.
Tightening torque: 1.5 ± 0.3 N·m
