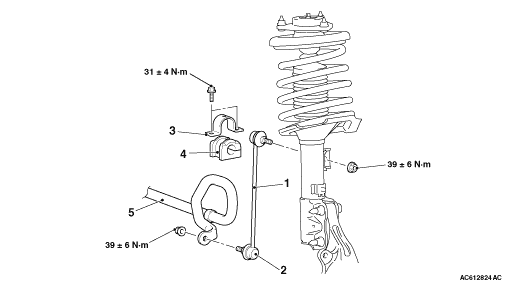

REMOVAL AND INSTALLATION <2WD>

			Stabilizer link removal steps
<<A>>	>>C<<	1.	Stabilizer link
			Stabilizer bushing removal steps
<<A>>	>>C<<	2.	Stabilizer link and stabilizer bar connection
		3.	Stabilizer bar bracket
	>>B<<	4.	Stabilizer bushing
			Stabilizer bar removal steps
		·	Exhaust front pipe removal (Refer to GROUP 15 - Exhaust Pipe and Main Muffler <PETROL-4A9>, <PETROL-4B1>).
		·	Catalytic converter assembly (Refer to GROUP 15 - Exhaust Pipe, Main Muffler and Catalytic Converter ) <DIESEL>.
		·	Rear roll stopper (Refer to GROUP 32 - Engine Roll Stopper and Centremember ).
<<A>>	>>C<<	1.	Stabilizer link
		3.	Stabilizer bar bracket
	>>B<<	4.	Stabilizer bushing
	>>A<<	5.	Stabilizer bar

REMOVAL SERVICE POINT

For removal service points, follow the same service procedures as 10 MY OUTLANDER.

For installation service points, follow the same service procedures as 10 MY OUTLANDER.
