REMOVAL AND INSTALLATION


Pre-removal and post-installation operation
  • Rear wiper blade and wiper arm assembly removal and installation (Refer to GROUP 51 - Rear Wiper and Washer .)
  • Tailgate spoiler assembly removal and installation (Refer to GROUP 51 - Tailgate Spoiler .)
  • Tailgate trim removal and installation (Refer to GROUP 52A - Tailgate Trim .)

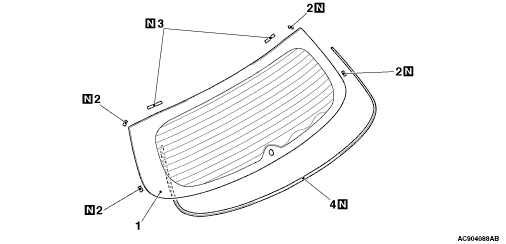

Removal steps


·
 Tailgate window defogger wiring harness connector connection
<<A>>
 >>B<<
 1.
 Tailgate window glass

>>A<<
 2.
 Fastener

>>A<<
 3.
 Glass stopper

>>A<<
 4.
 Tailgate dam

REMOVAL SERVICE POINT

<<A>> TAILGATE WINDOW GLASS REMOVAL
Remove the tailgate window glass by the same procedure as for the windshield (Refer to ).
note Use a piano wire to remove the tailgate window glass.

INSTALLATION SERVICE POINTS

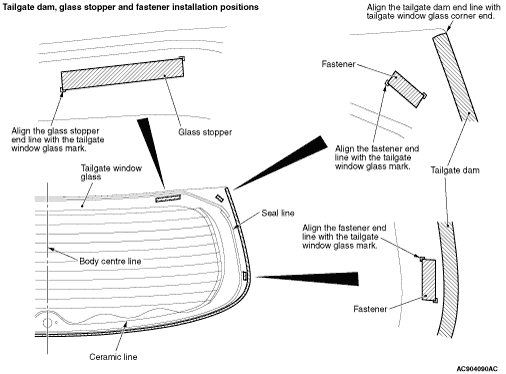

>>A<< TAILGATE DAM/GLASS STOPPER/FASTENER INSTALLATION
1.Use the parts cleaner (MZ100387 or equivalent) to degrease the inside circumference of the tailgate window glass and tailgate flanges.
2.

Peel off the protection sheet on the back of the tailgate dam and paste it to the specified position on the tailgate window glass.
3.Install the glass stopper and fastener to the specified position on the tailgate window glass


4.Install the fasteners to the specified positions on the tailgate flange.

>>B<< TAILGATE WINDOW GLASS INSTALLATION

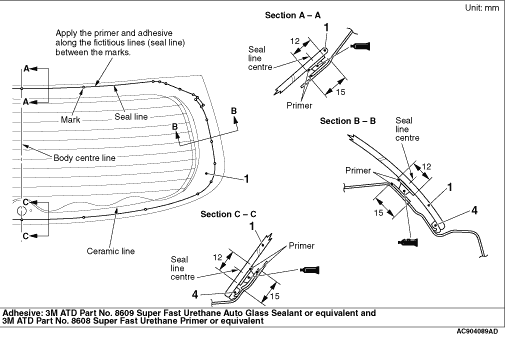

1.Apply the primer and adhesive.
2.Install the tailgate window glass by the same procedure as for the windshield glass (refer to ).
