REMOVAL AND INSTALLATION

	·	Washer tank (Refer to )
	·	Washer motor (Refer to )

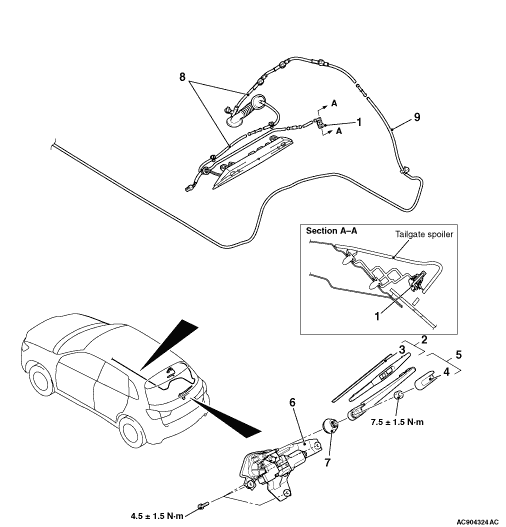

		Rear washer nozzle removal steps
	·	Tailgate spoiler (Refer to )
	·	High-mounted stop lamp assembly (Refer to )
	1.	Rear washer nozzle assembly
		Rear wiper blade removal steps
	2.	Rear wiper blade assembly
>>A<<	3.	Rear wiper blade
		Rear wiper motor removal steps
	4.	Cover
>>B<<	5.	Rear wiper arm assembly
	·	Tailgate trim (Refer to GROUP 52A, Tailgate Trim )
	6.	Rear wiper motor assembly
	7.	Grommet
		Rear washer hose removal steps
	·	Front/rear scuff plate, cowl side trim, quarter trim (Refer to GROUP 52A, Interior Trim )
	·	Tailgate trim (Refer to GROUP 52A, Tailgate Trim )
	8.	Rear washer hose (tailgate side)
	9.	Rear washer hose (body side)

note

For removal and installation of the wiper and washer switch, refer to GROUP 54A, Column Switch

INSTALLATION SERVICE POINTS

caution

Use a curved backing like that shown for the backing of a wiper blade to ensure sustained wiper wiping performance.

Assemble the wiper blade so that their edge stops at the specified position.
(A): Φ 2 marking ± 5 mm
