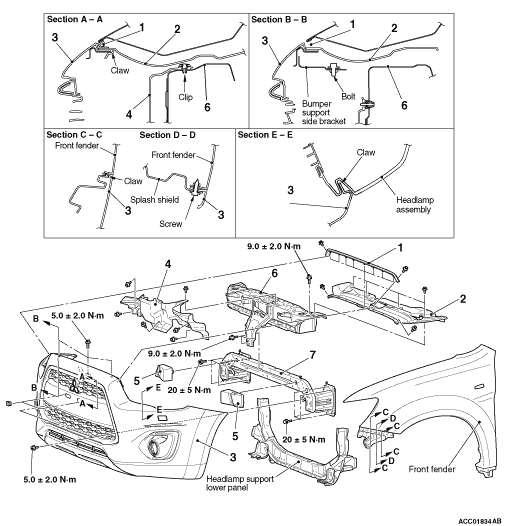

Removal steps
|
|
|
·
|
Headlamp washer draining <Vehicles with headlamp washer>
|
|
|
·
|
Headlamp washer hose connection <Vehicles with headlamp washer>
|
|
|
·
|
Front fog lamp connector connection <Vehicles with front fog lamp>
|
|
|
1.
|
Hood weatherstrip front
|
|
|
2.
|
Headlamp support upper panel cover
|
|
|
3.
|
Front bumper assembly
|
|
|
4.
|
Front bumper cover
|
|
|
5.
|
Front bumper core
|
|
|
6.
|
Headlamp support upper panel
|
|
|
·
|
Horn (Refer to GROUP 54A, Horn  )
|
|
|
·
|
Front harness
|
|
|
·
|
Ambient temperature sensor (Refer to GROUP 55, Ambient Temperature
Sensor )
|
|
|
7.
|
Front bumper reinforcement A
|
