REMOVAL AND INSTALLATION


Pre-removal and post-installation operation
  • Rear splash shield (Refer to GROUP 42A, Splash Shield )
  • Rear combination lamp removal and installation (Refer to GROUP 54A-Rear combination lamp )
  • Rear mud guard (Refer to )

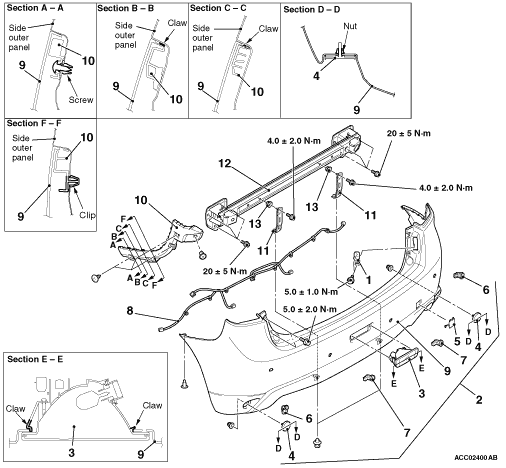

Removal steps


·
 Rear bumper harness connector connection


1.
 Tailgate damper


2.
 Rear bumper assembly


3.
 Rear fog lamp assembly


4.
 Reflector


5.
 Rear bumper cover


6.
 Corner sensor <Vehicles with reversing sensor system>


7.
 Back sensor <Vehicles with reversing sensor system>


8.
 Rear bumper harness


9.
 Rear bumper face


10.
 Rear bumper face support bracket


11.
 Rear bumper lower bracket


12.
 Rear bumper reinforcement

>>A<<
 13.
 Rear bumper reinforcement nut

REASSEMBLY SERVICE POINT

>>A<< REAR BUMPER REINFORCEMENT NUT INSTALLATION

It is recommended that the tool shown in the figure should be used to install the rear bumper reinforcement nut.
