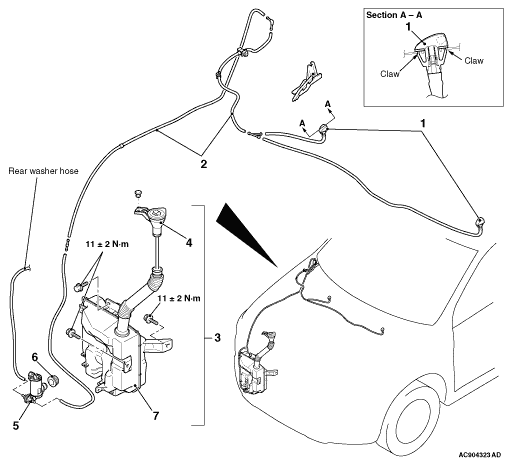

Windshield washer nozzle removal steps
|
|
|
·
|
Connection of windshield washer hose
|
|
|
1.
|
Windshield washer nozzle assembly
|
|
|
Windshield washer hose removal steps
|
|
|
·
|
Splash shield (RH) mounting clips
|
|
|
·
|
Connection of windshield washer hose
|
|
|
2.
|
Windshield washer hose
|
|
|
Washer tank removal steps
|
|
|
·
|
Engine room under cover front (Refer to  )
|
|
|
·
|
Splash shield (RH) mounting clips
|
|
|
·
|
Front bumper assembly (Refer to )
|
|
|
·
|
Connection of windshield washer hose
|
|
|
·
|
Connection of windshield washer motor connector
|
|
|
3.
|
Windshield washer tank assembly and windshield washer motor assembly
|
|
|
4.
|
Windshield washer tank filler cap
|
|
|
5.
|
Windshield washer motor
|
|
|
6.
|
Windshield washer tank inlet gasket
|
|
|
7.
|
Windshield washer tank
|
|
|
Windshield washer motor removal steps
|
|
|
·
|
Engine room under cover front (Refer to )
|
|
|
·
|
Front bumper assembly (Refer to )
|
|
|
·
|
Connection of front/rear washer hose
|
|
|
5.
|
Windshield washer motor
|
|
|
6.
|
Windshield washer tank inlet gasket
|
