REMOVAL AND INSTALLATION


note When replacing the battery of the vehicles with sub battery, always replace the main and sub battery at the same time. If the batteries are not replaced at the same time, the service lives will be shorter.
caution If the battery current sensor or engine-ECU is replaced, make the battery current sensor learn the zero point. (Refer to GROUP 00, Precautions Before Service - Battery Current Sensor Caliburation.)

<PETROL>

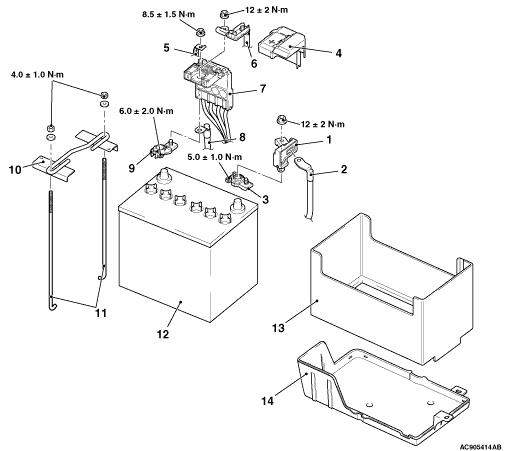

Removal steps


1.
 Battery current sensor <1600-Europe>


2.
 Connection of the battery harness [negative battery terminal]


3.
 Battery terminal assembly [negative battery terminal] <1600-Europe>


·
 Air cleaner intake duct (Refer to GROUP 15 - Air Cleaner ).


4.
 Fusible link cover


5.
 Connection of the battery harness [positive battery terminal]


6.
 Connection of the fusible link box


7.
 Connection of the battery harness [positive battery terminal]


8.
 Battery terminal assembly [positive battery terminal]


9.
 Battery holder


10.
 Battery bolt


11.
 Battery


12.
 Battery tray

<DIESEL>



Removal steps


1.
 Battery current sensor


2.
 Connection of the battery harness [negative battery terminal]


3.
 Battery terminal assembly [negative battery terminal]


·
 Air cleaner intake duct (Refer to GROUP 15 - Air Cleaner ).


4.
 Fusible link box cover


5.
 Connection of the battery harness [positive battery terminal]


6.
 Connection of fusible link box 1P assembly


7.
 Connection of fusible link box 6P assembly


8.
 Connection of the battery harness [positive battery terminal]


9.
 Battery terminal assembly [positive battery terminal]


10.
 Battery holder


11.
 Battery bolt


12.
 Battery


13.
 Battery cover


14.
 Battery tray
