RADIO AND CD PLAYER REMOVAL AND INSTALLATION


note When the radio and CD player are replaced, always turn the ignition switch to the ON position once and then carry out the operation check.
Pre-removal operation
  • Removal of instrument panel assembly centre (Refer to GROUP 52A - Instrument Centre Panel Assembly ).

 Post-installation operation
  • Installation of instrument panel assembly centre (Refer to GROUP 52A - Instrument Centre Panel Assembly ).

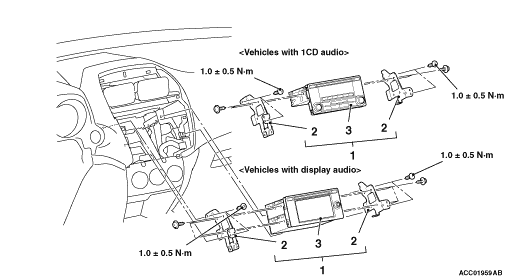

Removal Steps


1.
 Radio and CD player/Audio equip bracket (LH/RH)


2.
 Audio equip bracket (LH/RH)


3.
 Radio and CD player
