REMOVAL AND INSTALLATION


MULTIVISION DISPLAY


Pre-removal operation
  • Removal of Instrument panel assembly centre (Refer to GROUP 52A - Instrument Centre Panel assembly )

 Post-installation operation
  • Installation of Instrument panel assembly centre (Refer to GROUP 52A - Instrument Centre Panel assembly )




Removal Steps


1.
 Multivision display/bracket (LH/RH)


2.
 Bracket (LH/RH)


3.
 Multivision display

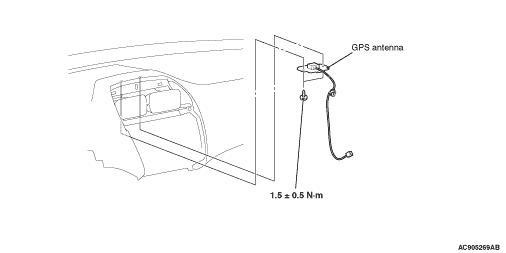

GPS antenna


Pre-removal operation
  • Removal of Multivision display assembly

 Post-installation operation
  • Installation of Multivision display assembly


INSTALLATION SERVICE POINT


>>A<< MULTIVISION DISPLAY
