REMOVAL AND INSTALLATION


Post-installation operation
  • Tailgate alignment (Refer to .)

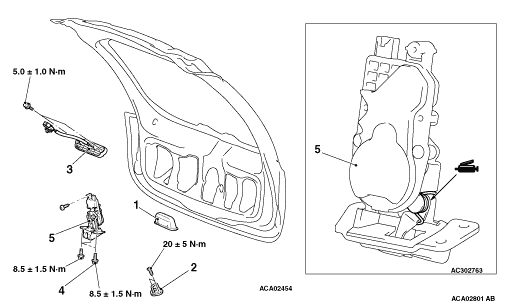

Pull handle removal steps


1.
 Pull handle



Striker removal steps


·
 Rear end trim (Refer to GROUP 52A - Interior Trim .)

>>A<<
 2.
 Striker



Tailgate lock release handle removal steps


·
 Tailgate trim (Refer to GROUP 52A - Tailgate Trim .)


3.
 Tailgate lock release handle



Tailgate latch removal steps


·
 Tailgate trim (Refer to GROUP 52A - Tailgate Trim .)


4.
 Earth bolt


5.
 Tailgate latch assembly

INSTALLATION SERVICE POINTS

>>A<< STRIKER INSTALLATION

Install the striker so that the striker centre does not deviate more than ±1.5 mm from the latch centre.
