Diagnosis Item 6: Diagnose when the M.U.T.-III cannot receive the data sent by combination meter.


caution When servicing a CAN bus line, earth yourself by touching a metal object such as an unpainted water pipe. If you fail to do, a component connected to the CAN bus line may be broken.






FUNCTION



TROUBLE JUDGEMENT CONDITIONS



PROBABLE CAUSES



  • Damaged harness wires and connectors
  • Power supply circuit malfunction of the combination meter
  • Malfunction of the combination meter

DIAGNOSIS PROCEDURE

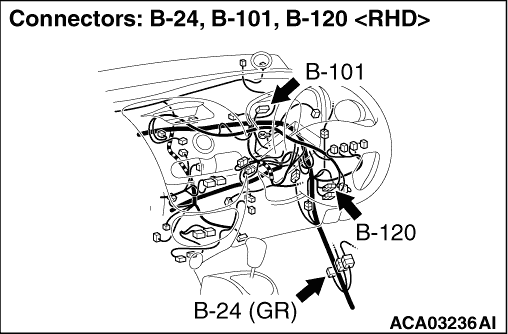

STEP 1. Connector check: B-24 joint connector (CAN1), B-101 combination meter connector and B-120 intermediate connector
caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

When checking the joint connector, ensure that its wiring harness side and its short pins are not damaged.

Q. Is the check result normal?

Go to Step 2

Repair the defective connector. Replace the joint connector as necessary.

STEP 2. Resistance measurement at B-24 joint connector (CAN1) and B-120 intermediate connector.
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .
(1)Disconnect joint connector (CAN1) and the RV meter connector, and measure at the wiring harness side.
(2)Turn the electric motor switch to the LOCK (OFF) position.
(3)
caution When measuring the resistance, disconnect the negative auxiliary battery terminal. For details refer to .
Ensure that the negative auxiliary battery terminal is disconnected.

(4)Continuity between B-24 joint connector (CAN1) terminal No.6 and B-120 intermediate connector terminal No.1 <LHD>
OK: Continuity (2 Ω or less)

(5)Continuity between B-24 joint connector (CAN1) terminal No.17 and B-120 intermediate connector terminal No.12 <LHD>
OK: Continuity (2 Ω or less)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

(6)Continuity between B-24 joint connector (CAN1) terminal No.5 and B-120 intermediate connector terminal No.1 <RHD>
OK: Continuity (2 Ω or less)

(7)Continuity between B-24 joint connector (CAN1) terminal No.16 and B-120 intermediate connector terminal No.12 <RHD>
OK: Continuity (2 Ω or less)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<All the resistances measure 2 Ω or less> Go to Step 3.

<Either or all of the resistances measure more than 2 Ω> Repair the wiring harness between joint connector (CAN1) and the B-120 intermediate connector.

STEP 3. Resistance measurement at B-101 combination meter connector and B-120 intermediate connector.
caution A digital multimeter should be used. For details refer to .
caution The test wiring harness should be used. For details refer to .
(1)Disconnect the joint connector (CAN1) and the combination meter connector and intermediate connector, and measure at the wiring harness side.
(2)Turn the electric motor switch to the LOCK (OFF) position.
(3)
caution When measuring the resistance, disconnect the negative auxiliary battery terminal. For details refer to .
Ensure that the negative auxiliary battery terminal is disconnected.

(4)Continuity between B-120 intermediate connector terminal No.1 and B-101 combination meter connector terminal No.17
OK: Continuity (2 Ω or less)

(5)Continuity between B-120 intermediate connector terminal No.12 and B-101 combination meter connector terminal No.18
OK: Continuity (2 Ω or less)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .

Q. Is the check result normal?

<All the resistances measure 2 Ω or less> Go to Step 4 .

<Either or all of the resistances measure more than 2 Ω> Repair the wiring harness between intermediate connector and the combination meter connector.

STEP 4. Resistance measurement at B-101 combination meter connector.
caution A digital multimeter should be used. For details refer to .
(1)Remove the combination meter, and measure at the equipment side.

(2)Resistance at B-101 combination meter connector terminal Nos.17 and 18
OK: 120 ± 20 Ω

Q. Is the check result normal?

<1 kΩ or more> Power supply to the combination meter may be suspected. Refer to .

<Less than 1 kΩ> Replace the combination meter.
