Inspection procedure 7: One of the door switch signals (including the tailgate latch switch) is not received.


caution Whenever the ECU is replaced, ensure that the input signal circuit is normal.










COMMENTS ON TROUBLE SYMPTOM



note When the right, left rear door or the tailgate is opened, the signal is also displayed as "Rear door switch". Therefore, when "Rear door switch" signal is displayed as abnormal, you should determine which signal line is defective by opening the rear doors and the tailgate one at a time.

PROBABLE CAUSES



  • Malfunction of rear door switch (LH)
  • Malfunction of rear door switch (RH)
  • Malfunction of tailgate latch switch
  • Malfunction of the ETACS-ECU
  • Damaged harness wires and connectors

DIAGNOSIS PROCEDURE


STEP 1. M.U.T.-III data list



(1)Open the driver’s and passenger’s doors.
Item No.
 Item name
 Normal condition
19
 Driver’s door switch
 ON
48
 Passenger’s door switch
 ON
OK: Normal condition is displayed.
(2)Open the rear door (RH) with the other doors and the tailgate closed.
Item No.
 Item name
 Normal condition
49
 Rear door switch
 ON
OK: Normal condition is displayed.
(3)Open the rear door (LH) with the other doors and the tailgate closed.
Item No.
 Item name
 Normal condition
49
 Rear door switch
 ON
OK: Normal condition is displayed.
(4)Open the tailgate with the other doors closed.
Item No.
 Item name
 Normal condition
49
 Rear door switch
 ON
OK: Normal condition is displayed.

Q. Is the check result normal?











STEP 2. Check the installation condition.



Q. Is the check result normal?

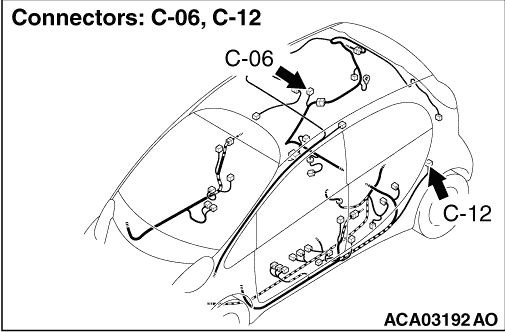

STEP 3. Connector check: C-06 rear door switch (RH) connector, C-12 rear door switch (LH) connector, F-06 tailgate latch switch connector


Q. Is the check result normal?





STEP 4. Check the rear door switches or the tailgate latch switch.



Q. Is the check result normal?





STEP 5. Connector check: B-317 ETACS-ECU connector


Q. Is the check result normal?

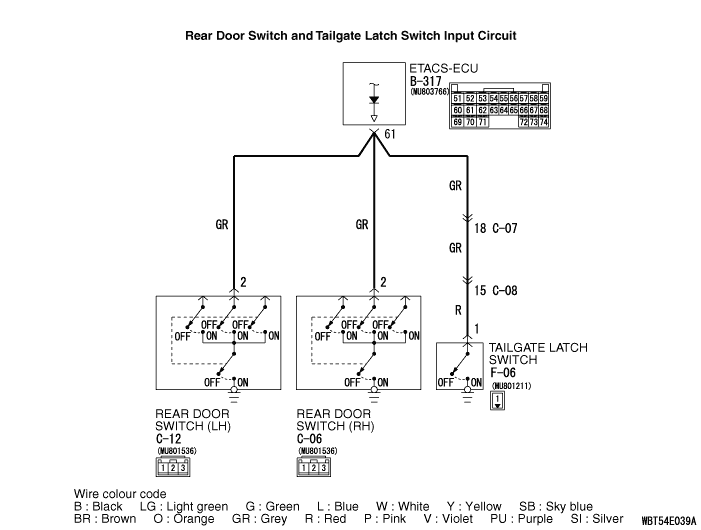

STEP 6. Check the wiring harness between each rear door switch connector or the tailgate latch switch connector and the ETACS-ECU connector.




  • Check the wiring harness between C-06 rear door switch (RH) connector terminal No. 2 and B-317 ETACS-ECU connector terminal No. 61. <Rear door (RH)>
  • Check the wiring harness between C-12 rear door switch (LH) connector terminal No. 2 and B-317 ETACS-ECU connector terminal No. 61. <Rear door (LH)>
  • Check the wiring harness between F-06 tailgate latch switch connector terminal No. 1 and B-317 ETACS-ECU connector terminal No. 61. <Tailgate>
note Prior to the wiring harness inspection, check C-07, C-08 intermediate connectors, and repair if necessary.

Q. Is the check result normal?





STEP 7. Connector check: B-317 ETACS-ECU connector


Q. Is the check result normal?





STEP 8. M.U.T.-III data list



Item No.
 Item name
 Normal condition
49
 Rear door switch
 ON
OK: When each of the doors and the tailgate is opened, normal condition is displayed for all.

Q. Is the check result normal?
