REMOVAL AND INSTALLATION


danger When servicing the high-voltage system parts, be sure to wear the specified protection equipment and disconnect the service plug to interrupt the high-voltage supply (Refer to ).

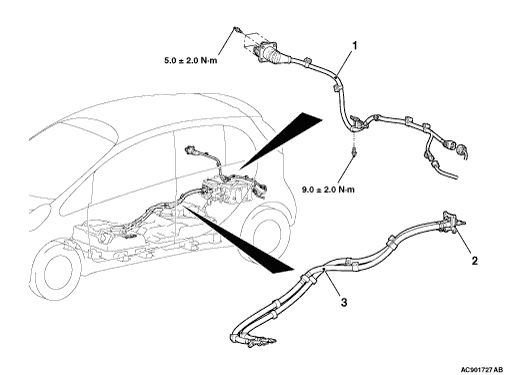

EV charger cable (regular charging) removal procedure


·
 Splash shield rear assembly (RH) (Refer to GROUP 42 - Splash Shield .)


1.
 EV charger cable (regular charging)



Main battery cable removal procedure


2.
 Main battery cable connection (Refer to .)


·
 Main battery (Refer to .)


3.
 Main battery cable
