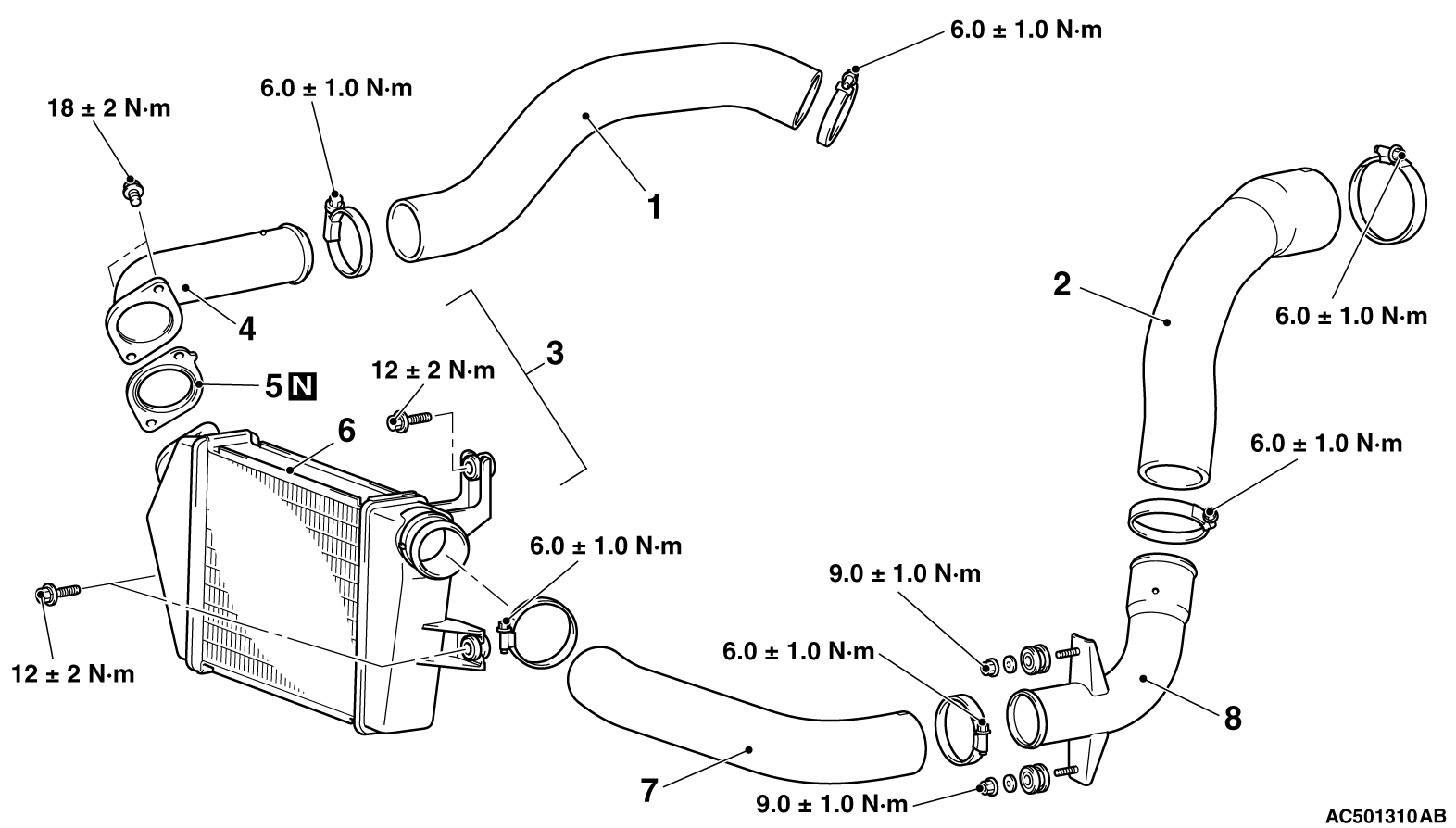

REMOVAL AND INSTALLATION



Removal steps


·
 Air Duct (Refer to ).


1.
 Air hose A1


2.
 Air hose B2


3.
 Intercooler, intercooler gasket, intercooler pipe assembly


·
 Front bumper assembly (Refer to GROUP 51 - Front Bumper Assembly ).


4.
 Intercooler pipe

>>A<<
 5.
 Intercooler gasket


6.
 Intercooler assembly


7.
 Air hose B1


8.
 Air pipe B1

INSTALLATION SERVICE POINT

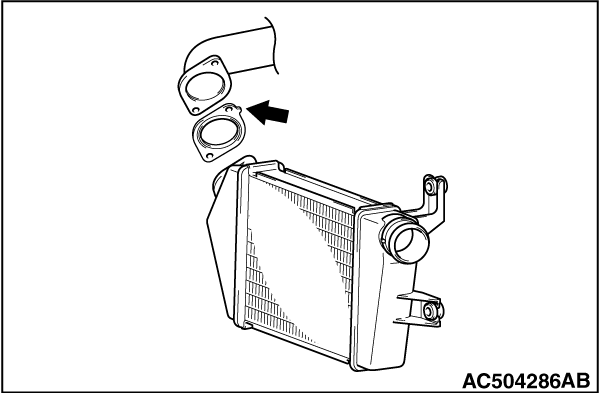

>>A<< INTERCOOLER GASKET INSTALLATION

The tab on the intercooler gasket should be position as shown.
