REMOVAL AND INSTALLATION


warning
  • Before removal of the air bag module, refer to GROUP 52B, Service Precautions () and Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring ().
  • When removing and installing the steering wheel, do not let it bump against the air bag module.
caution When the steering lock cylinder is replaced, refer to the ID Code Registration Judgement Table and register the each ID code.

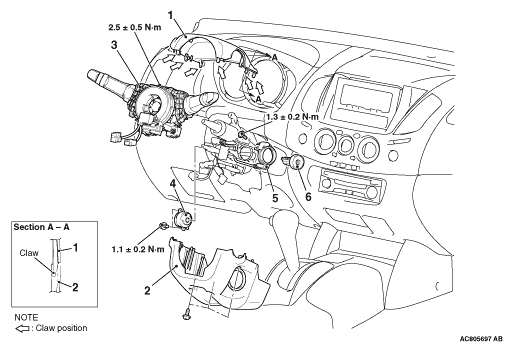

Removal steps


·
 Lower panel (Refer to GROUP 52A, Instrument panel assembly .)


1.
 Steering column upper cover (Refer to GROUP 52A, Instrument Panel Assembly ).


2.
 Steering column lower cover (Refer to GROUP 52A, Instrument Panel Assembly ).


·
 Steering wheel (Refer to GROUP 37, Steering wheel .)


3.
 Column switch assembly


4.
 Ignition switch
<<A>>
5.
 Key ring
<<B>>
6.
 Steering lock cylinder

REMOVAL SERVICE POINTS

<<A>> KEY RING REMOVAL

Remove the key ring from the steering lock cylinder assembly because the key ring cannot be removed from the vehicle with immobilizer system.

<<B>> STEERING LOCK CYLINDER REMOVAL
1.Insert the key in the steering lock cylinder and turn it to the "ACC" position.

2.Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
