HOW TO PERFORM CHASSIS NUMBER (CHASSIS NO.) WRITING







note Perform the variant coding of the engine-ECU when the chassis No. or the vehicle identification number is registered to the engine-ECU.

ENGINE KEY CODE AND CHASSIS NUMBER (CHASSIS NO.) REGISTRATION STEPS FOR THE ENGINE-ECU


caution
  • Check that diagnosis code No.P0603 "EEPROM fail" is not set. When diagnosis code No. P0603 "EEPROM fail" is set, the engine-ECU cannot store engine key code and chassis No. even if the engine key code and chassis No. are registered. If this diagnosis code is set, troubleshoot the engine-ECU and repair, and then register the engine key code and chassis No. to the engine-ECU.
  • Before connecting or disconnecting the M.U.T.-III, turn the ignition switch to the "LOCK" (OFF) position.




note For details on how to use the M.U.T.-III, refer to the "M.U.T.-III User’s Manual."
1.
2.
3.
4.

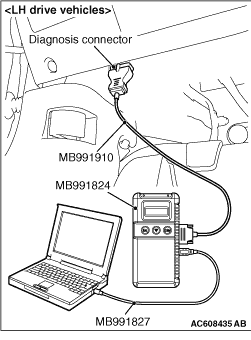

5.
6.
note When the V.C.I. is energised, the V.C.I. indicator lamp will be illuminated in a green colour.
7.

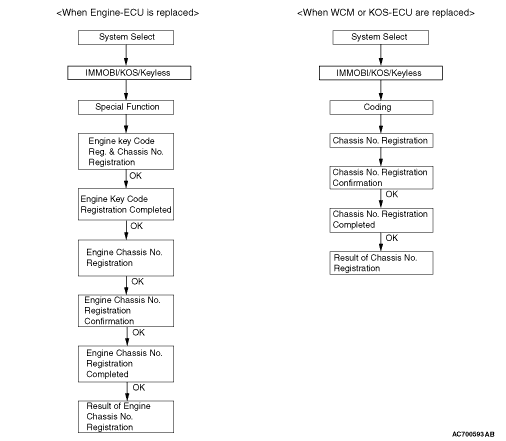

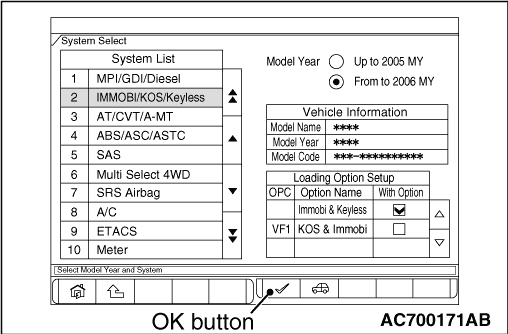

note Since the M.U.T.-III screen display changes according to the vehicle specifications, the illustrations for each item may differ from the actual screen display.
8.

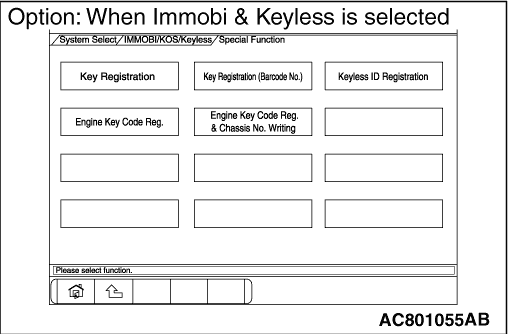

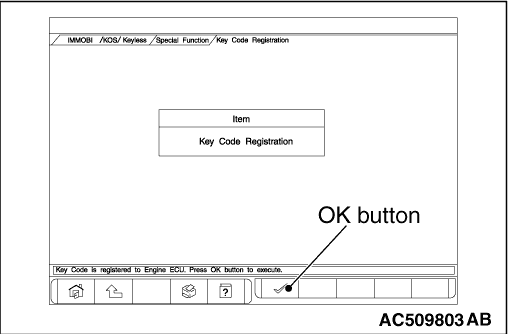

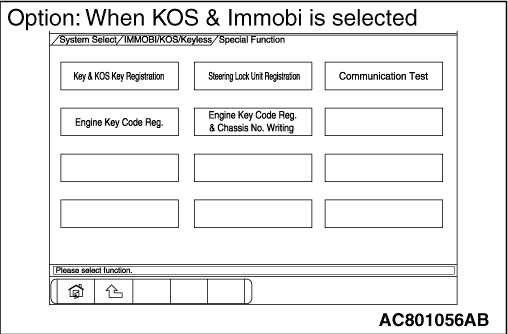

  • The display of "Special Function" screen changes, depending on the contents of the option. For vehicles with KOS, select "KOS&Immobi." For vehicles with WCM, select "Immobi&Keyless."
9.
10.



11.

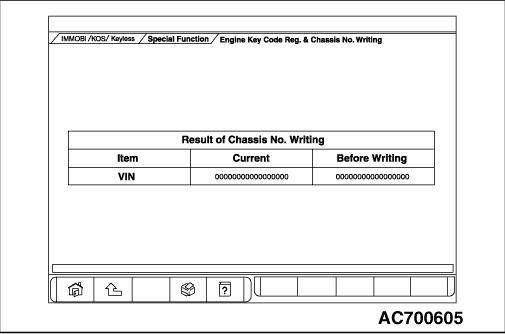

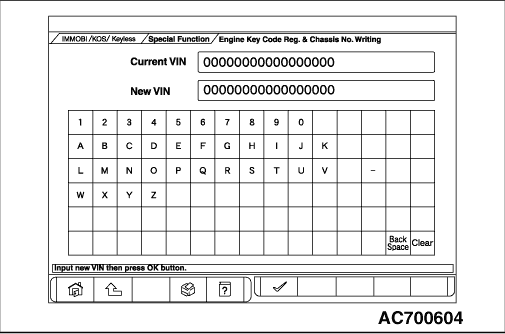

12.
13.


14.
15.
16.
17.


18.
19.
20.
21.
22.

CHASSIS NO. WRITING STEPS FOR WCM AND KOS-ECU


caution
  • Before the chassis No. registration to WCM, check that the chassis Nos. of engine-ECU and vehicle are matched.
  • Check that diagnosis code No. B2416 "ECU internal error" is not set. When diagnosis code No. B2416 "ECU internal error" is set, the WCM and the KOS-ECU cannot store the Chassis No. even if the Chassis No. is written. If this diagnosis code is set, troubleshoot the WCM or the KOS-ECU and repair, and then write the Chassis No. to the WCM or the KOS-ECU.
  • Before connecting or disconnecting the M.U.T.-III, turn the ignition switch to the "LOCK" (OFF) position.




note For details on how to use the M.U.T.-III, refer to the "M.U.T.-III operation manual."
1.
2.
3.
4.
5.
6.
note When the V.C.I. is energised, the V.C.I. indicator lamp will be illuminated in a green colour.
7.
8.



  • For vehicles with KOS, select "KOS&Immobi." For vehicles with WCM, select "Immobi&Keyless."
9.

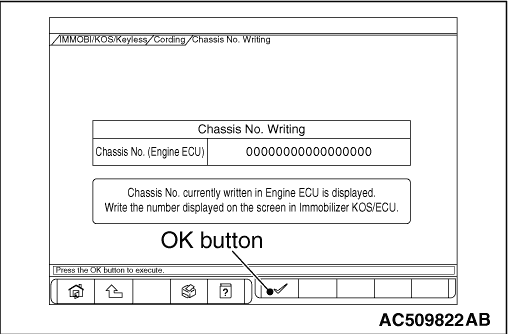

10.


11.


12.
13.
14.


15.
