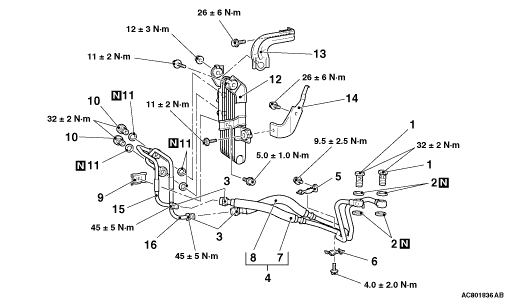

Engine oil cooler hose removal steps
|
|
|
·
|
Engine room under cover front A, B and engine room side cover (RH) (Refer to GROUP 51 - Under Cover  )
|
|
|
1.
|
Eye bolt
|
|
|
2.
|
Gasket
|
|
|
3.
|
Engine oil cooler tube and hose connection
|
|
|
4.
|
Engine oil cooler hose assembly
|
|
|
5.
|
Engine oil cooler hose bracket
|
|
|
6.
|
Engine oil cooler line clamp
|
|
|
7.
|
Engine oil cooler return hose
|
|
|
8.
|
Engine oil cooler feed hose
|
|
|
|
Engine oil cooler tube removal steps
|
|
|
·
|
Front bumper and radiator grille assembly (Refer to GROUP 51 - Front Bumper and Radiator Grille Assembly )
|
|
|
3.
|
Engine oil cooler tube and hose connection
|
|
|
9.
|
Engine oil cooler line clamp
|
|
|
10.
|
Eye bolt
|
|
|
11.
|
Gasket
|
|
|
15.
|
Engine oil cooler return tube
|
|
|
16.
|
Engine oil cooler feed tube
|
|
|
|
Engine oil cooler removal steps
|
|
|
·
|
Front bumper and radiator grille assembly (Refer to GROUP 51 - Front Bumper and Radiator Grille Assembly )
|
|
|
9.
|
Engine oil cooler line clamp
|
|
|
10.
|
Eye bolt
|
|
|
11.
|
Gasket
|
|
|
12.
|
Engine oil cooler
|
|
|
13.
|
Engine oil cooler bracket
|
|
|
14.
|
Engine oil cooler bracket
|
