REMOVAL AND INSTALLATION <4B10>


Pre-removal operation
  • Engine Coolant Draining (Refer to ).
  • Alternator and Others Belt Removal (Refer to GROUP 11C - Crankshaft Pulley ).

 Post-installation operation
  • Alternator and Others Belt Installation (Refer to GROUP 11C - Crankshaft Pulley ).
  • Alternator and Others Belt Tension Check (Refer to GROUP 11C - On-vehicle Service, Drive Belt Tension Check ).
  • Engine Coolant Refilling (Refer to ).

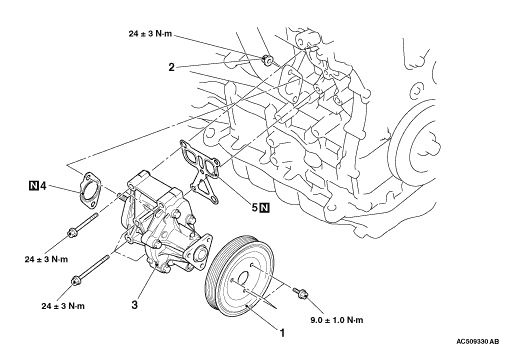

Removal steps


1.
 Water pump pulley


2.
 Water pump inlet pipe mounting nuts


3.
 Water pump


4.
 Cooling water line gasket


5.
 Water pump gasket
