REMOVAL AND INSTALLATION <4B10>


Pre-removal operation
  • Engine Coolant Draining (Refer to ).
  • Engine Upper Cover Removal (Refer to GROUP 11C - Camshaft ).
  • Air Cleaner Assembly Removal (Refer to GROUP 15 - Air Cleaner ).
  • Thermostat Removal (Refer to ).

 Post-installation operation
  • Thermostat Installation (Refer to ).
  • Air Cleaner Assembly Installation (Refer to GROUP 15 - Air Cleaner ).
  • Engine Upper Cover Installation (Refer to GROUP 11C - Camshaft ).
  • Engine Coolant Refilling (Refer to ).

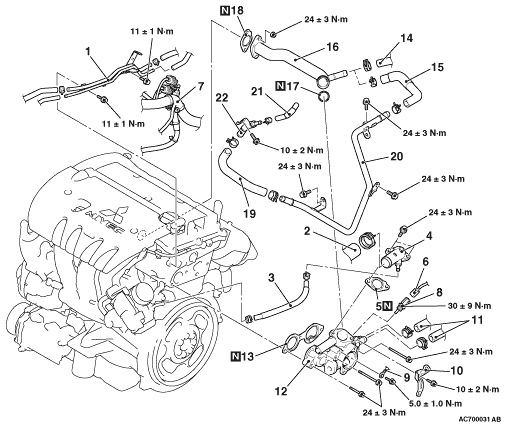

Removal steps


1.
 Emission control vacuum pipe assembly
<<A>>
 >>C<<
 2.
 Radiator upper hose connection


3.
 Throttle body water feed hose


4.
 Cooling water outlet hose fitting


5.
 Cooling water outlet hose fitting gasket


6.
 Engine coolant temperature sensor connector connection


7.
 Control wiring harness connection
<<B>>
 >>B<<
 8.
 Engine coolant temperature sensor


9.
 Earth cable connection


10.
 Harness bracket


11.
 Heater hose connection


12.
 Thermostat case


13.
 Thermostat case gasket


14.
 Transmission fluid cooler hose connection <CVT>


15.
 Cooling water line hose <M/T>


16.
 Water pump inlet pipe

>>A<<
 17.
 O-ring


18.
 Cooling water line gasket


19.
 Cooling water line hose <M/T>


20.
 Cooling water line pipe <M/T>


21.
 Cooling water line hose <M/T>


22.
 Cooling water line pipe <M/T>

REMOVAL SERVICE POINTS

<<A>> RADIATOR UPPER HOSE DISCONNECTION

Make mating marks on the radiator upper hose and the hose clamp. Disconnect the radiator upper hose.

<<B>> ENGINE COOLANT TEMPERATURE SENSOR REMOVAL

Use special tool water temp sensor wrench (MB992042) to remove the engine coolant temperature sensor.

INSTALLATION SERVICE POINTS

>>A<< O-RING INSTALLATION
caution Avoid adhesion of engine oil or grease to the O-ring.

Fit the O-ring in the water pump inlet pipe groove, wet the O-ring circumference or the pipe mounting area inner wall, and then insert the O-ring.

>>B<< ENGINE COOLANT TEMPERATURE SENSOR INSTALLATION

1.Apply the specified sealant to the thread of the engine coolant temperature sensor.
Specified sealant: Three bond 1324N or equivalent
note Install the engine coolant temperature sensor within 3 minutes after the application of sealant.

2.
caution After the installation, until a sufficient period of time (one hour or more) elapses, do not apply the oil or water to the sealant application area or start the engine.
Use special tool water temp sensor wrench (MB992042) to tighten the engine coolant temperature sensor to the specified torque.
Tightening torque: 30 ± 9 N·m

>>C<< RADIATOR UPPER HOSE CONNECTION

1.Insert radiator upper hose as far as the projection of the cooling water outlet hose fitting.
2.Align the mating marks on the radiator upper hose and hose clamp, and then connect the radiator upper hose.
