REMOVAL AND INSTALLATION <4A9>


Pre-removal Operation
  • Engine Cover Removal (Refer to GROUP 11A - Camshaft ).
  • Alternator and Others Belt Removal (Refer to GROUP 11A - Crankshaft Pulley ).

 Post-installation Operation
  • Alternator and Others Belt Installation (Refer to GROUP 11A - Crankshaft Pulley ).
  • Alternator and Others Belt Tension Check and Adjustment (Refer to GROUP 11A - On-Vehicle Service, Drive Belt Tension Check and Adjustment ).
  • Engine Cover Installation (Refer to GROUP 11A - Camshaft ).

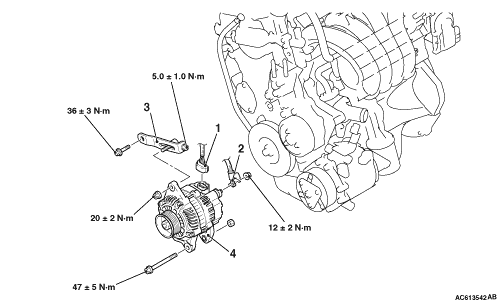

Removal steps


1.
 Alternator connector connection


2.
 Alternator terminal connection


3.
 Alternator brace
<<A>>
4.
 Alternator assembly

REMOVAL SERVICE POINT

<<A>> ALTERNATOR ASSEMBLY REMOVAL
Remove the alternator assembly from above the vehicle.
