REMOVAL AND INSTALLATION <4B11-TURBO>


Pre-removal Operation
  • Engine Room Under Cover Front A, B Removal (Refer to GROUP 51 - Under Cover ).
  • Radiator Condenser Tank Removal (Refer to GROUP 14 - Radiator ).
  • Fuel Pump Resistor Removal (Refer to GROUP 13C - Engine Control Resistor ).

 Post-installation Operation
  • Fuel Pump Resistor Installation (Refer to GROUP 13C - Engine Control Resistor ).
  • Radiator Condenser Tank Installation (Refer to GROUP 14 - Radiator ).
  • Engine Room Under Cover Front A, B Installation (Refer to GROUP 51 - Under Cover ).

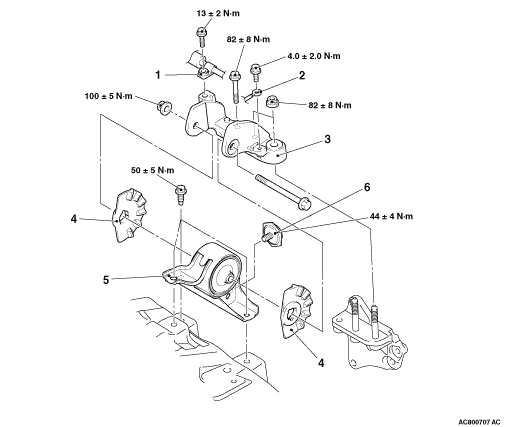

Removal steps


1.
 Power steering pressure hose clamp connection


2.
 Earth cable connection
<<A>>
3.
 Engine mounting bracket

>>A<<
 4.
 Engine mounting insulator stopper


5.
 Engine mounting insulator


6.
 Engine mounting stopper

REMOVAL SERVICE POINT

<<A>> ENGINE MOUNTING BRACKET REMOVAL
1.
caution When supporting the engine and transmission assembly by using the garage jack, pay attention not to deform the engine oil pan.
Place a garage jack against the engine oil pan with a piece of wood in between, and support the engine and transmission assembly.
2.Operate the garage jack so that the engine and transmission assembly weight is not applied to the engine mounting insulator, and then remove the engine mounting bracket.

INSTALLATION SERVICE POINT

>>A<< ENGINE MOUNTING INSULATOR STOPPER INSTALLATION

Install the engine mounting insulator stopper as shown in the figure.
