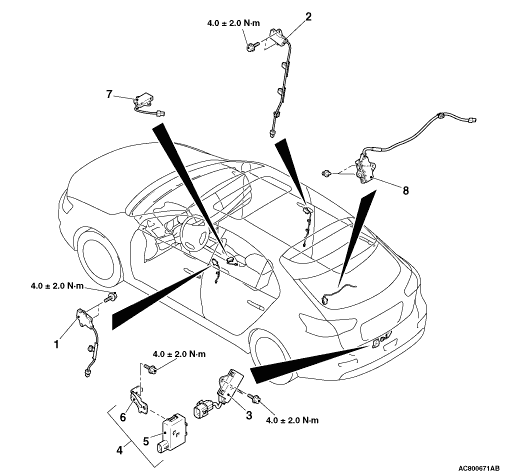

Outside transmission antenna assembly (LH) removal steps
|
|
|
·
|
Centre pillar trim (LH) (Refer to GROUP 52A - Interior Trim  .)
|
|
|
1.
|
Outside transmission antenna assembly (LH)
|
|
|
|
Outside transmission antenna assembly (RH) removal steps
|
|
|
·
|
Centre pillar trim (RH) (Refer to GROUP 52A - Interior Trim .)
|
|
|
2.
|
Outside transmission antenna assembly (RH)
|
|
|
|
Outside transmission antenna assembly (tailgate) removal steps
|
|
|
·
|
Rear bumper assembly (Refer to GROUP 51 - Rear Bumper Assembly ).
|
|
|
3.
|
Outside transmission antenna assembly (tailgate)
|
|
|
|
Buzzer assembly removal steps
|
|
|
·
|
Rear bumper assembly (Refer to GROUP 51 - Rear Bumper Assembly ).
|
|
|
4.
|
Buzzer assembly
|
|
|
5.
|
Buzzer
|
|
|
6.
|
Bracket
|
|
|
|
Inside transmission antenna assembly (front) removal steps
|
|
|
·
|
Floor console (Refer to GROUP 52A - Floor Console Assembly .)
|
|
|
7.
|
Inside transmission antenna assembly (front)
|
|
|
|
Inside transmission antenna assembly (rear) removal steps
|
|
|
·
|
Fold the rear seatback.
|
|
|
8.
|
Inside transmission antenna assembly (rear)
|
