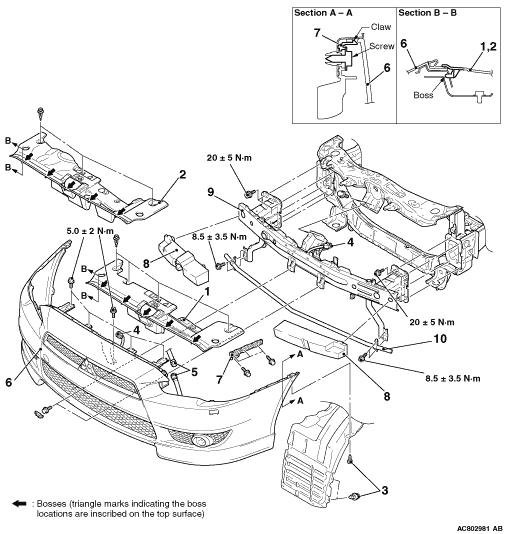

Removal steps
|
|
|
·
|
Air cleaner intake duct (Refer to GROUP 15, Air Cleaner <4A9> , <4B1>, <BWC>)
|
|
|
1.
|
Headlamp support panel cover <Except for RALLIART>
|
|
|
2.
|
Headlamp support panel cover <RALLIART>
|
|
|
3.
|
Splash shield mounting clips and screws
|
|
|
4.
|
Front bumper harness connector connection
|
|
|
5.
|
Headlamp washer hose connection <Vehicles with headlamp
washer>
|
|
|
6.
|
Front bumper and radiator grille assembly
|
|
|
7.
|
Front bumper side bracket
|
|
|
8.
|
Front bumper core
|
|
|
·
|
Horn (Refer to GROUP 54A, Horn )
|
|
|
·
|
Ambient temperature sensor (Refer to GROUP 55A, Ambient Temperature Sensor )
|
|
|
9.
|
Front bumper reinforcement A
|
|
|
10.
|
Front bumper reinforcement B
|
