REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Removal and Installation of Front Pillar Trim, Upper centre Pillar Trim, Rear Pillar Trim (Refer to ).
  • Removal and Installation of Rear Seatbelt Outer Assembly (RH or LH) (Refer to ).

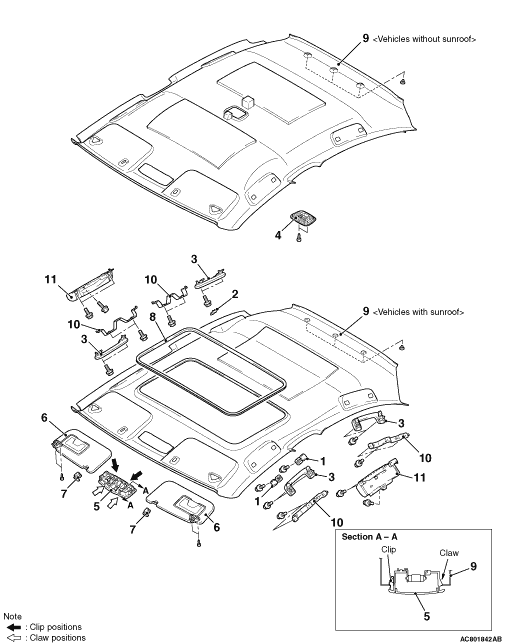

Removal steps


1.
 Assist grip clip


2.
 Assist grip cover


3.
 Assist grip


4.
 Rear room lamp <Vehicles without sunroof>


5.
 Front room lamp


6.
 Sun visor assembly
<<A>>
7.
 Sun visor holder


8.
 Sunroof lid inner weather strip rear <Vehicles with sunroof>
<<B>>
9.
 Headlining


10.
 Assist grip bracket


11.
 Roof energy absorption box <Vehicles without curtain air bag>

REMOVAL SERVICE POINTS

<<A>> SUN VISOR HOLDER REMOVAL

Insert the special tools ornament remover (MB990784) into the sun visor holder from its left and right sides to disengage the claws on the sun visor holder sides.

<<B>> HEADLINING REMOVAL

To remove the clip, insert a vinyl cord into a clearance between the clip and the headlining, and pass it around the clip. Then, pull out the clip downwards while pulling the vinyl cord.
