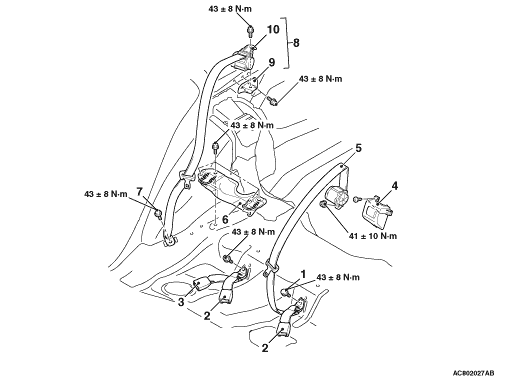

Removal steps
|
|
|
·
|
Rear seat cushion assembly (Refer to  ).
|
|
|
1.
|
Rear seatbelt outer centre lower anchor bolt
|
|
|
2.
|
Rear seatbelt inner
|
|
|
3.
|
Rear seatbelt inner centre
|
|
|
·
|
Rear seatback cover & pad (Refer to ).
|
|
|
4.
|
Rear seatbelt ELR cover
|
|
|
5.
|
Rear seatbelt outer centre
|
|
|
6.
|
Child restraint bracket
|
|
|
7.
|
Rear seatbelt outer lower anchor bolt
|
|
|
·
|
Rear pillar trim (Refer to ).
|
|
|
8.
|
Rear seatbelt outer assembly
|
|
|
9.
|
Rear seatbelt retractor bracket
|
|
|
10.
|
Rear seatbelt outer
|
