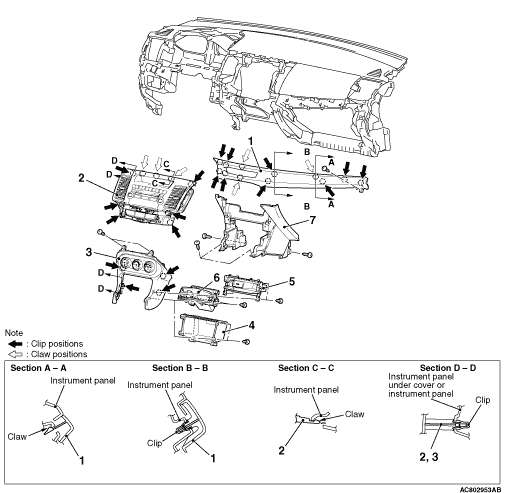

Removal steps
|
|
|
·.
|
Glove box side panel (Refer to  ).
|
|
|
1.
|
Instrument panel air outlet garnish lower (Passenger’s side)
|
|
|
2.
|
Instrument centre panel
|
|
|
·.
|
Floor console assembly (Refer to ).
|
|
|
3.
|
Instrument panel centre lower
|
|
|
4.
|
Instrument panel console box <Vehicles with instrument panel console
box>
|
|
|
5.
|
Tray <Vehicles with instrument panel console box>
|
|
|
6.
|
Extra box <Vehicles without instrument panel console box>
|
|
|
·.
|
Floor console side cover (Refer to ).
|
|
|
7.
|
Instrument panel under cover
|
