REMOVAL AND INSTALLATION



caution If the combination meter needs to be replaced, the current driving distance and elapsed days must be entered into the meter after the replacement in order to be used for service reminder function. Therefore, read "Integrated mileage for reminder," "Integrated days for reminder," "Mileage until Extra reminder," "Months until Extra reminder," and "Current schedule" from the meter before the replacement using the special function of M.U.T.-III, and note them. For the operation method of M.U.T.-III, refer to On-vehicle service . If "Integrated mileage for reminder" or "Integrated days for reminder" cannot be read from the meter using M.U.T.-III, use the following method.

  • As for the driving distance for check warning, use the driving distance displayed on the multi information display.
  • As for the elapsed days for check warning, calculate the number of elapsed days from the delivery date to the customer (service reminder function start date) and current date.
Pre-removal and Post-installation Operation
    Glove box side panel (Refer to GROUP 52A, Glove box ).
    Instrument centre panel (Refer to GROUP 52A, Instrument Centre Panel ).
    Instrument panel air outlet garnish lower (LH) <LH drive vehicles> or (RH) <RH drive vehicles> (Refer to GROUP 52A, Instrument lower Panel ).

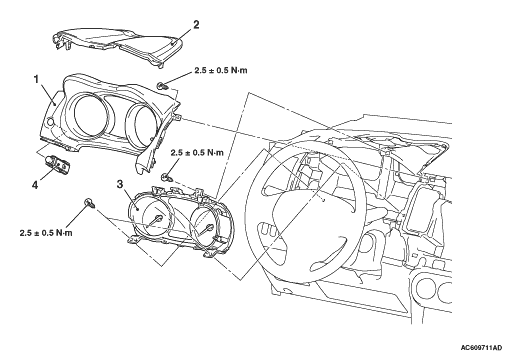

Removal Steps


1.
Combination meter bezel


2.
Instrument meter cluster panel


3.
Combination meter assembly


4.
Meter information switch
